Fuel Pump Driver Module (FPDM): Notes

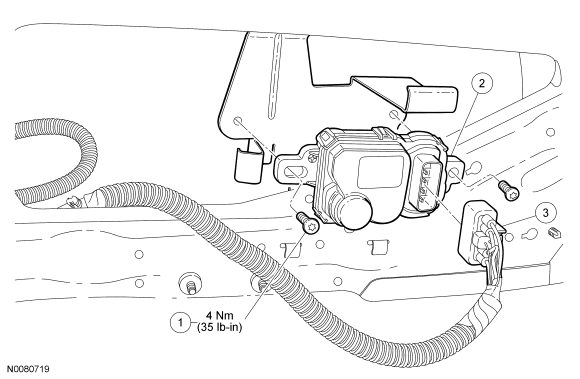

Fig 1: Exploded View Of Fuel Pump Driver Module (FPDM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W504755	Fuel pump driver module (FPDM) bolt (2 required)
2	9D372	FPDM
3	14A464	FPDM electrical connector
