Vehicle Dynamics Module Connector

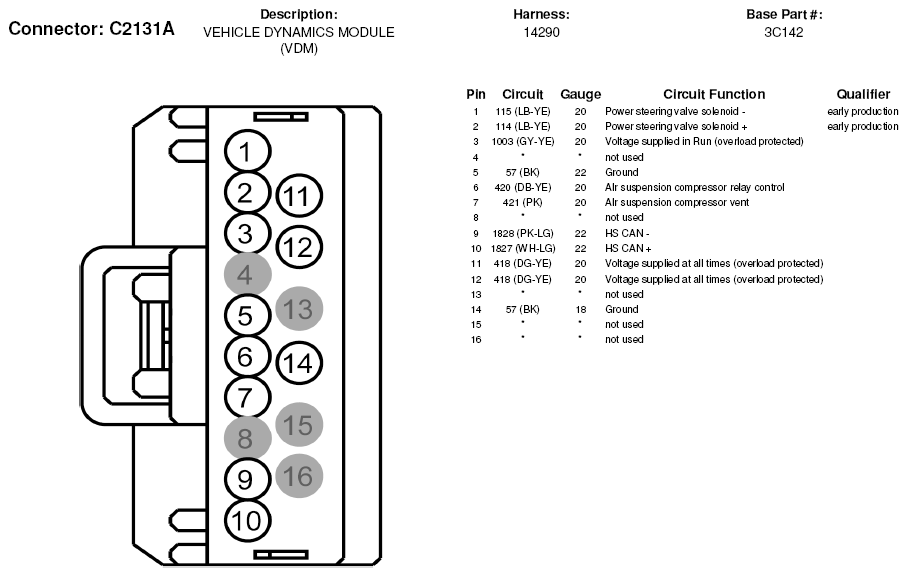

Fig 1: Vehicle Dynamics Module Connector End View (C2131A)

Courtesy of FORD MOTOR CO.

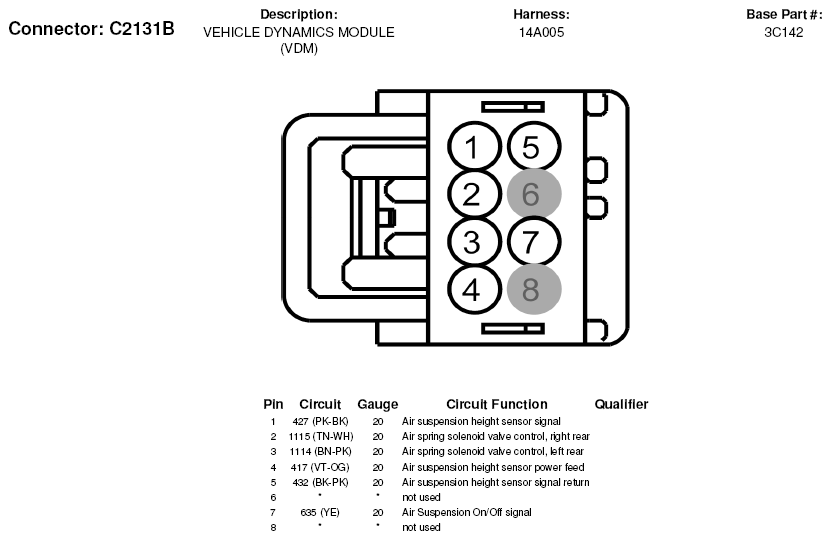

Fig 2: Vehicle Dynamics Module Connector End View (C2131B)

Courtesy of FORD MOTOR CO.
