Oil Cooler: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Item | Part Number | Description |
|---|---|---|
| 1 | 6714 | Oil filter |
| 2 | N806155 | Oil cooler hose bolt |
| 3 | 8N039 | Oil cooler hose (part of 6A642) |

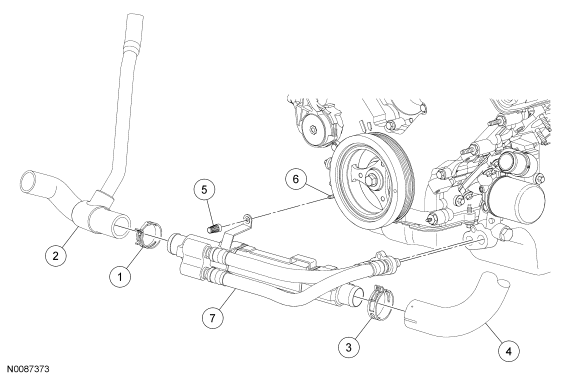

| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Coolant hose clamp |
| 2 | 8286 | Coolant hose |
| 3 | 15161 | Coolant hose clamp |
| 4 | 8286 | Coolant hose |
| 5 | - | Wire nut |
| 6 | N808586 | Engine front cover stud bolt |
| 7 | 6A642 | Oil cooler assembly |
