Throttle Body: Notes

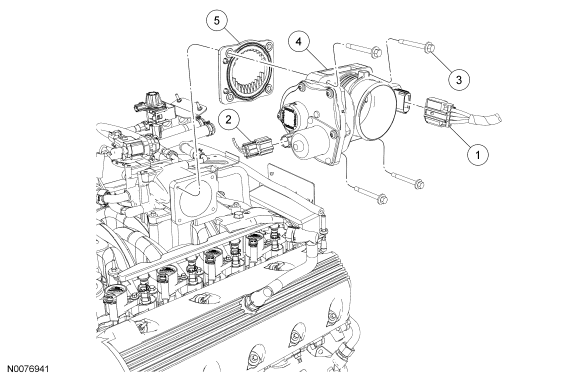

Fig 1: Exploded View Of Throttle Body Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Throttle position (TP) sensor electrical connector (part of 12B637)
2	14A464	Electronic throttle control electrical connector (part of 12B637)
3	W506102	Throttle body (TB) bolt (4 required)
4	9F991	TB
5	9E930	TB gasket
