Driver Side Door Lock Switch Connector
Driver Side Door Lock Switch Connector

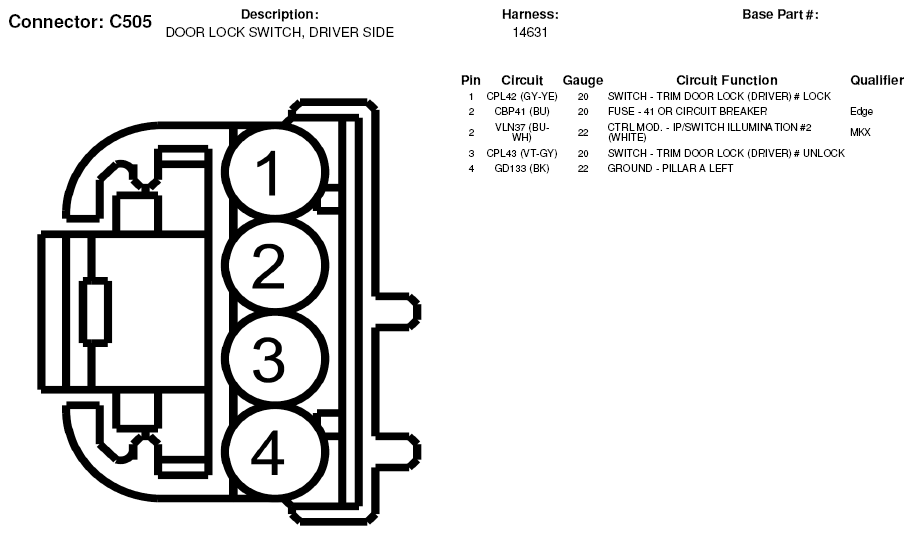

Fig 1: Driver Side Door Lock Switch Connector End View (C505)
