Left Rear Tweeter Connector
Left Rear Tweeter Connector

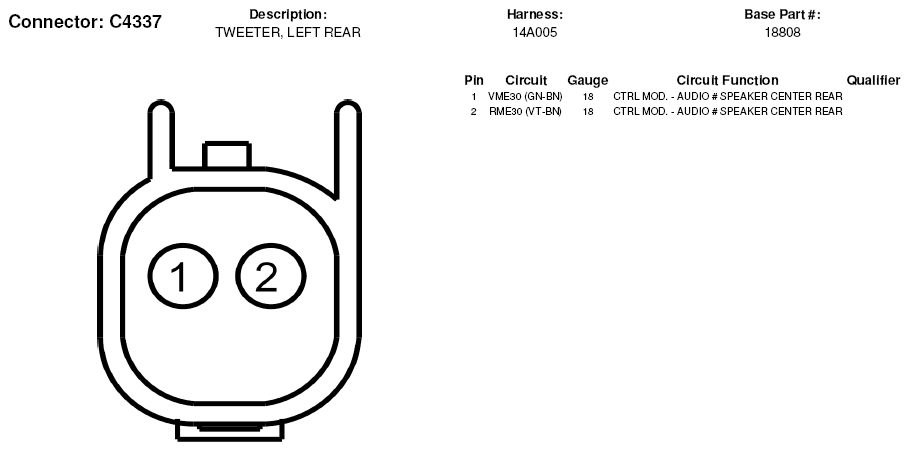

Fig 1: Left Rear Tweeter Connector End View (C4337)
