Subwoofer Connector
Subwoofer Connector

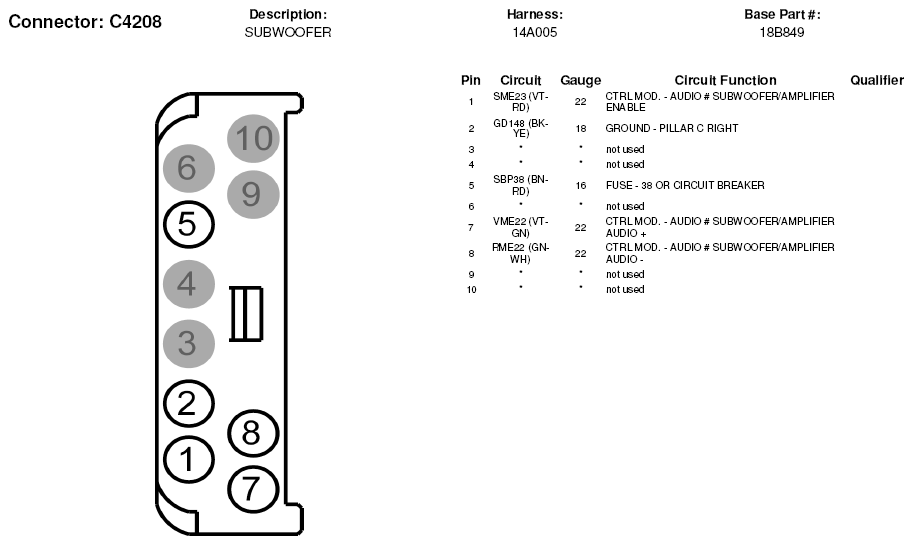

Fig 1: Subwoofer Connector End View (C4208)

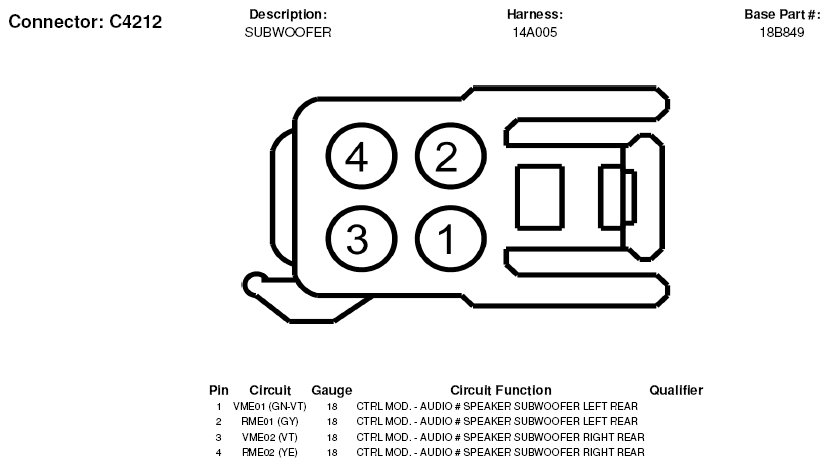

Fig 2: Subwoofer Connector End View (C4212)
