Right Front Speaker Connector

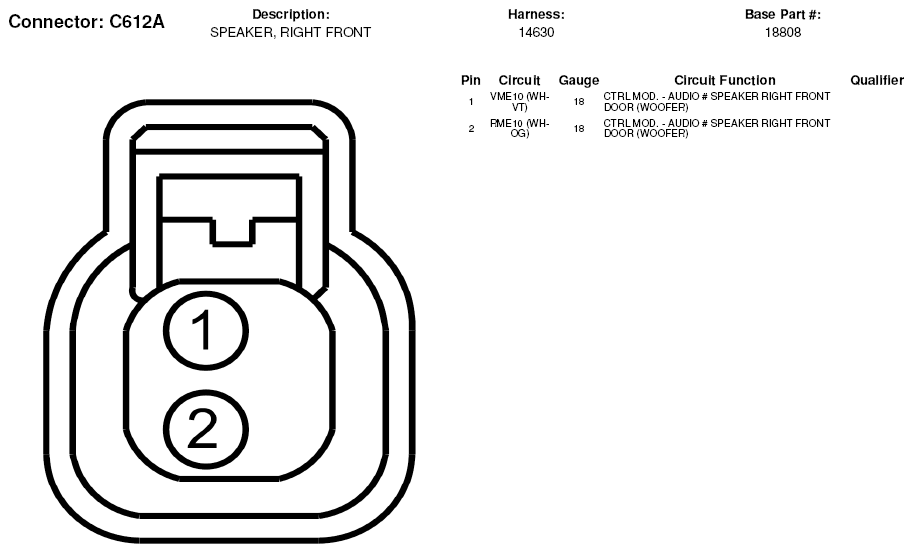

Fig 1: Right Front Speaker Connector End View (C612A)

G05598933

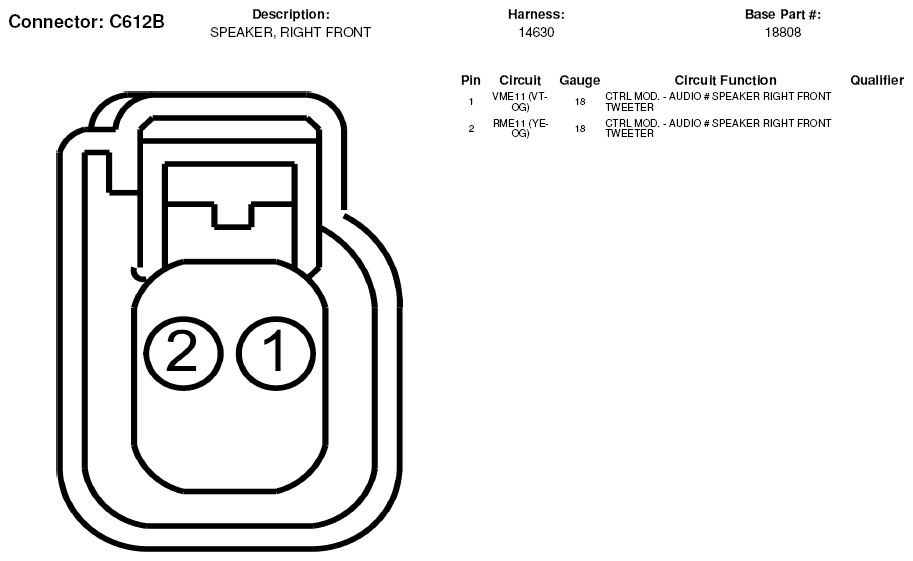

Fig 2: Right Front Speaker Connector End View (C612B)

G05598934

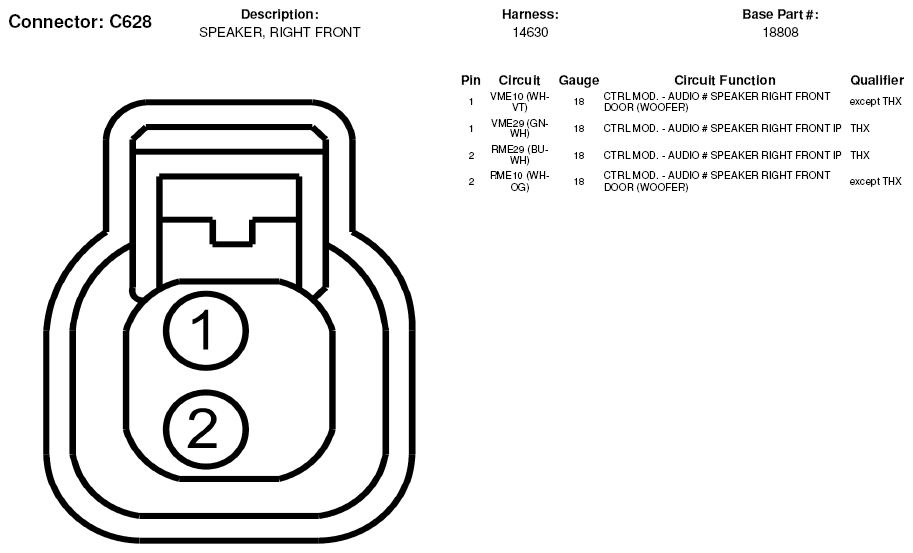

Fig 3: Right Front Speaker Connector End View (C628)

G05598938
