Restraints Control Module Connectors

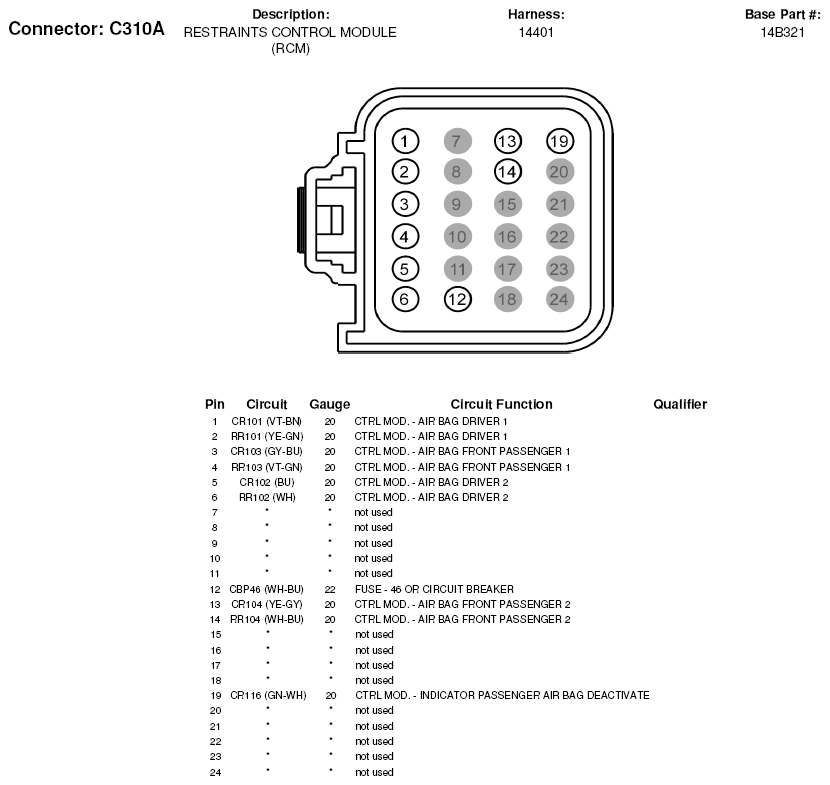

Fig 1: Restraints Control Module Connector End View (C310A)

G05598866

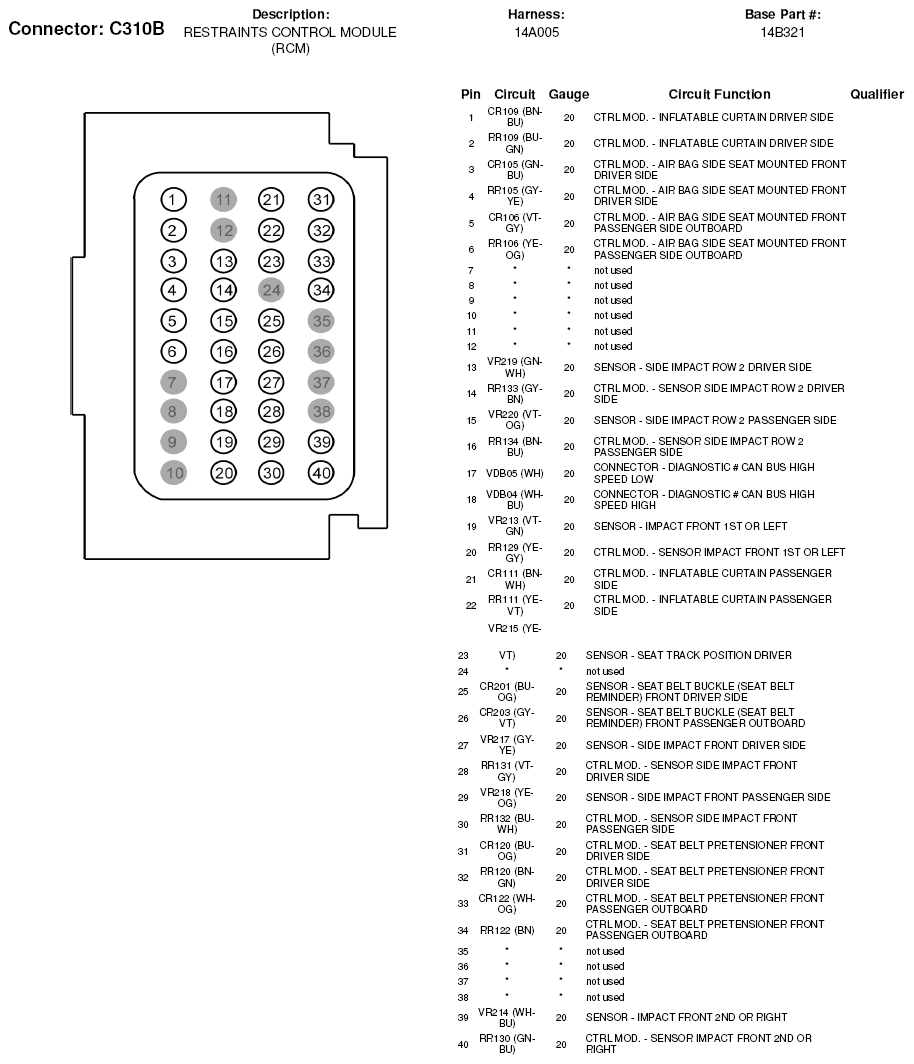

Fig 2: Restraints Control Module Connector End View (C310B)

G05598867
