Steering Angle Sensor Module Connector

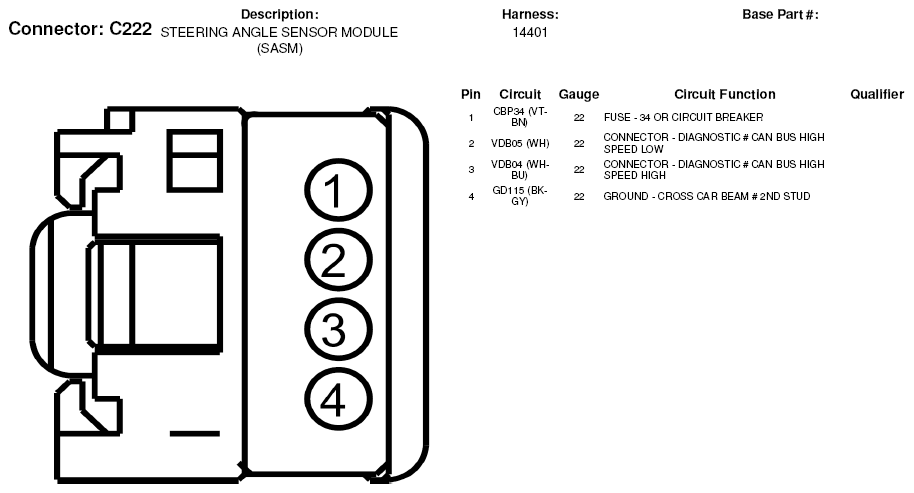

Fig 1: Steering Angle Sensor Module Connector End View (C222)
G05598840
