Blower Motor Speed Control Connector
Blower Motor Speed Control Connector

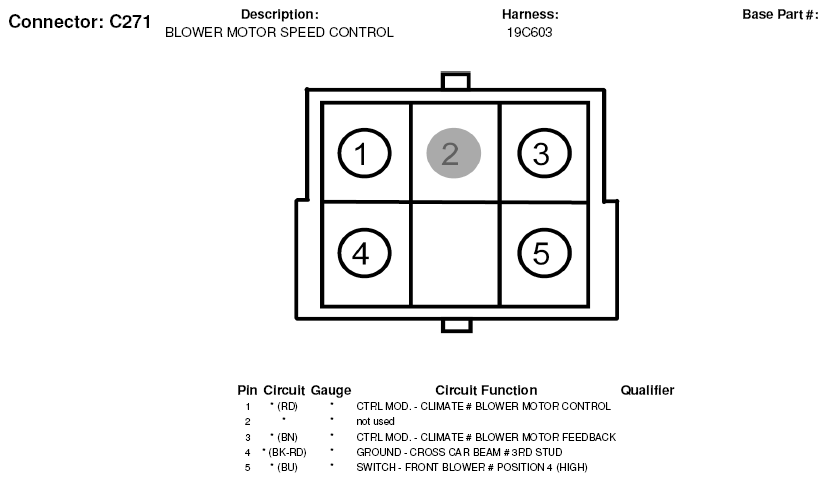

Fig 1: Blower Motor Speed Control Connector End View (C271)
