Driver Side Climate Controlled Seat Backrest Module Connector
Driver Side Climate Controlled Seat Backrest Module Connector

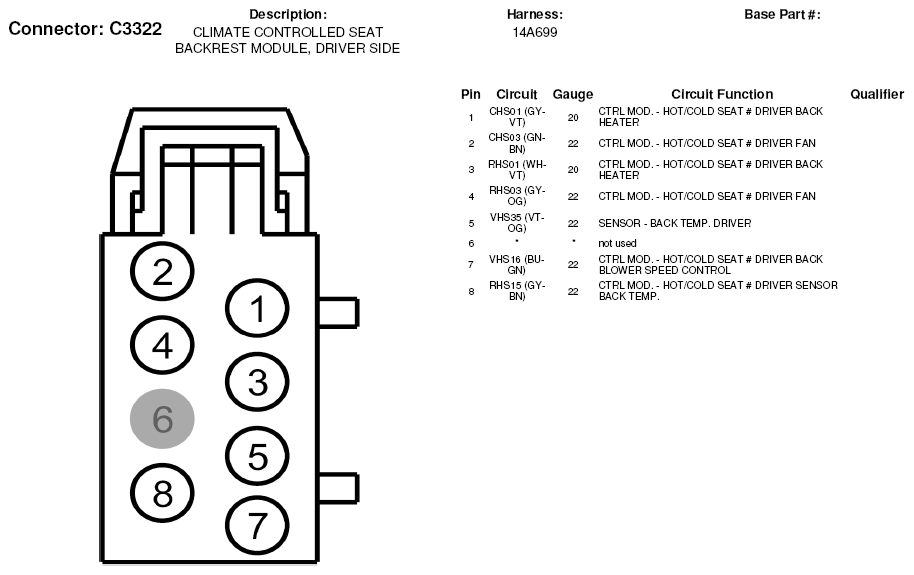

Fig 1: Driver Side Climate Controlled Seat Backrest Module Connector End View (C3322)
