Generator Connectors

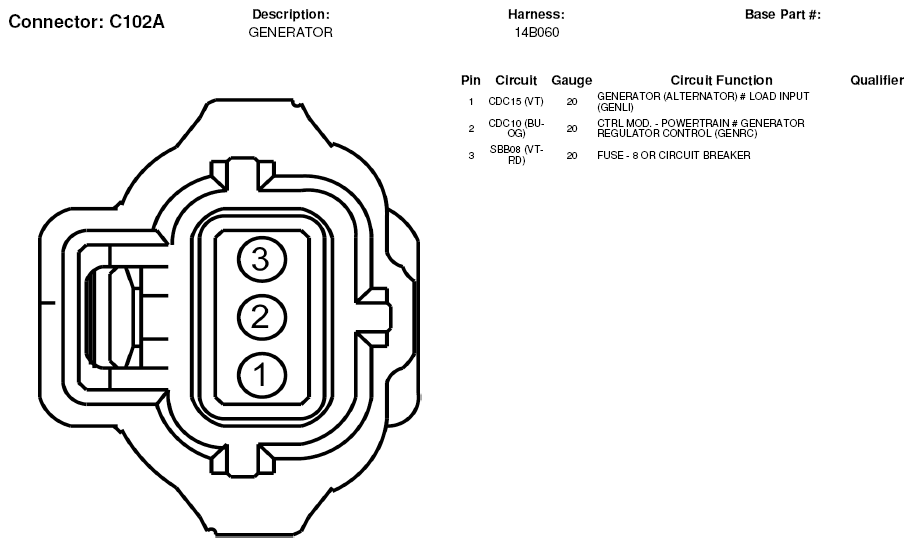

Fig 1: Generator Connector End View (C102A)
Fig 2: Generator Connector End View (C102B)
