Inline Connector

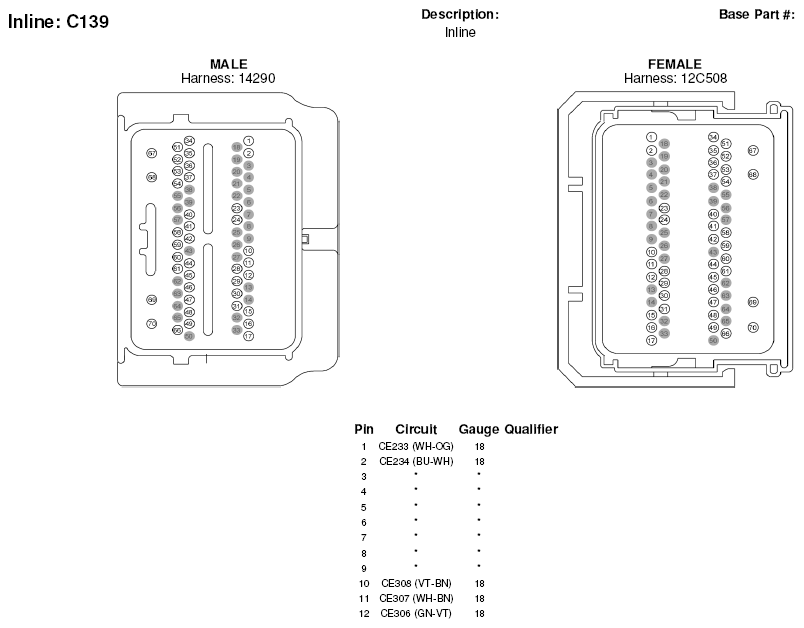

Fig 1: Inline (1 Of 2) Connector End View (C139) (1 Of 2)

Fig 2: Inline (2 Of 2) Connector End View (C139) (2 Of 2)

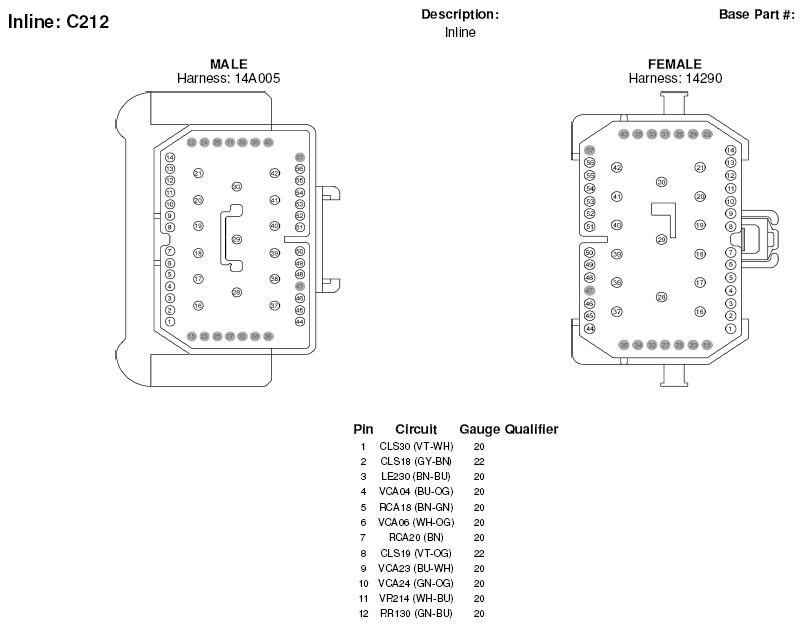

Fig 3: Inline (1 Of 2) Connector End View (C212) (1 Of 2)

Fig 4: Inline (2 Of 2) Connector End View (C212) (2 Of 2)

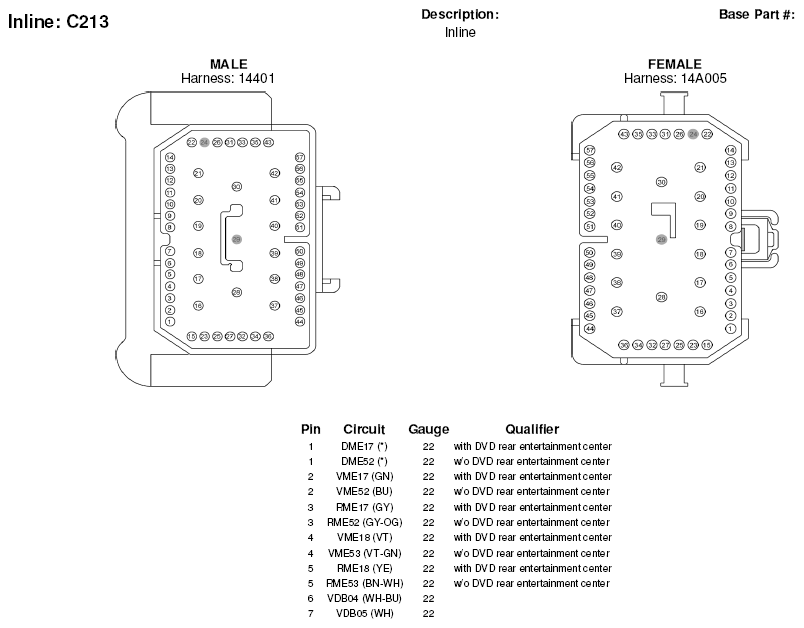

Fig 5: Inline (1 Of 2) Connector End View (C213) (1 Of 2)

Fig 6: Inline (2 Of 2) Connector End View (C213) (2 Of 2)

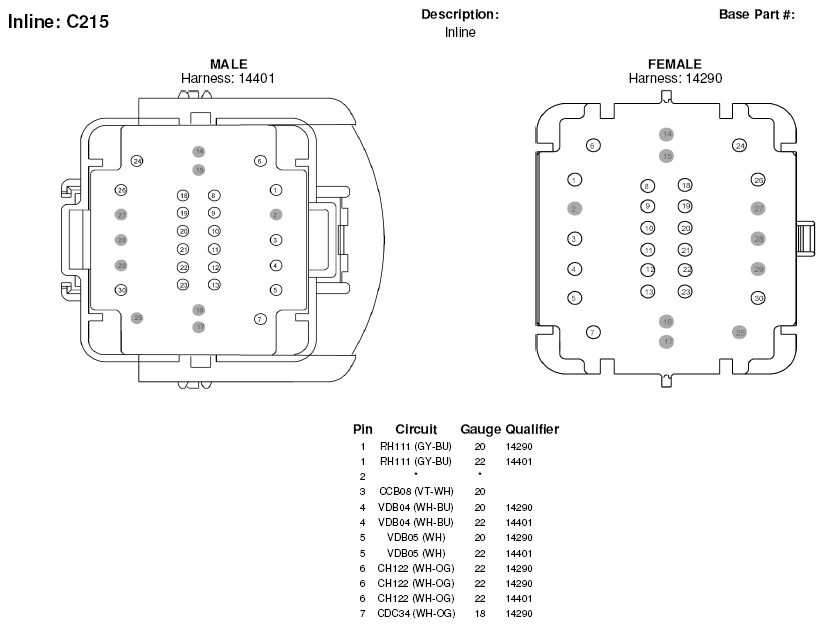

Fig 7: Inline (1 Of 2) Connector End View (C215) (1 Of 2)

Fig 8: Inline (2 Of 2) Connector End View (C215) (2 Of 2)

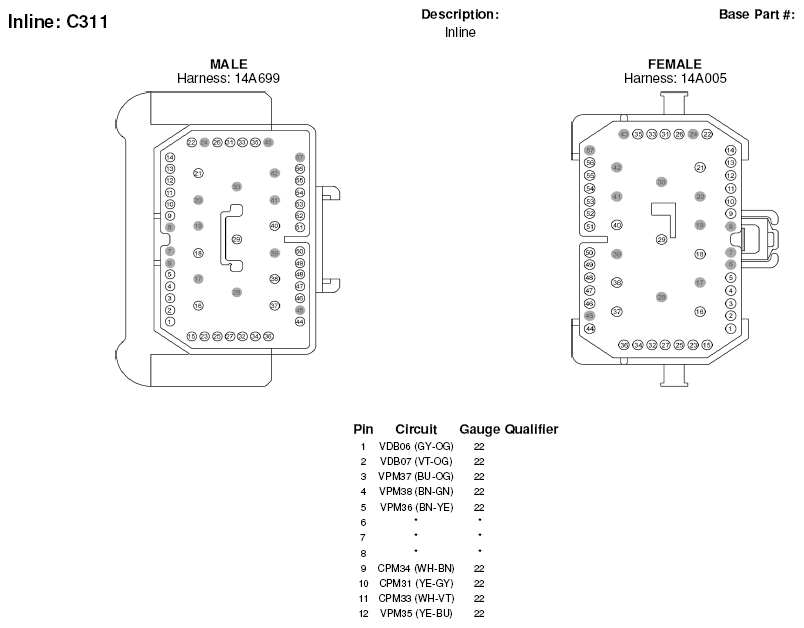

Fig 9: Inline (1 Of 2) Connector End View (C311) (1 Of 2)

Fig 10: Inline (2 Of 2) Connector End View (C311) (2 Of 2)

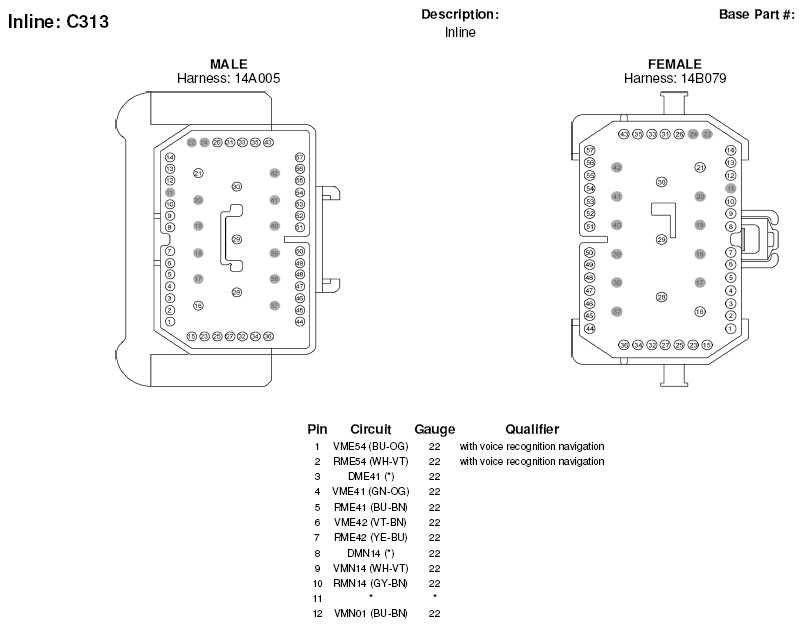

Fig 11: Inline (1 Of 2) Connector End View (C313) (1 Of 2)

Fig 12: Inline (2 Of 2) Connector End View (C313) (2 Of 2)

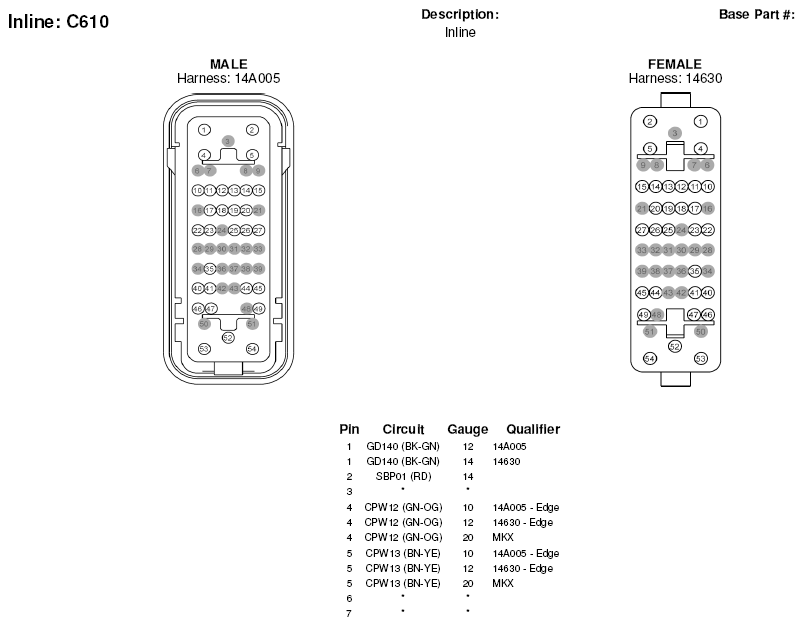

Fig 13: Inline (1 Of 2) Connector End View (C610) (1 Of 2)

Fig 14: Inline (2 Of 2) Connector End View (C610) (2 Of 2)

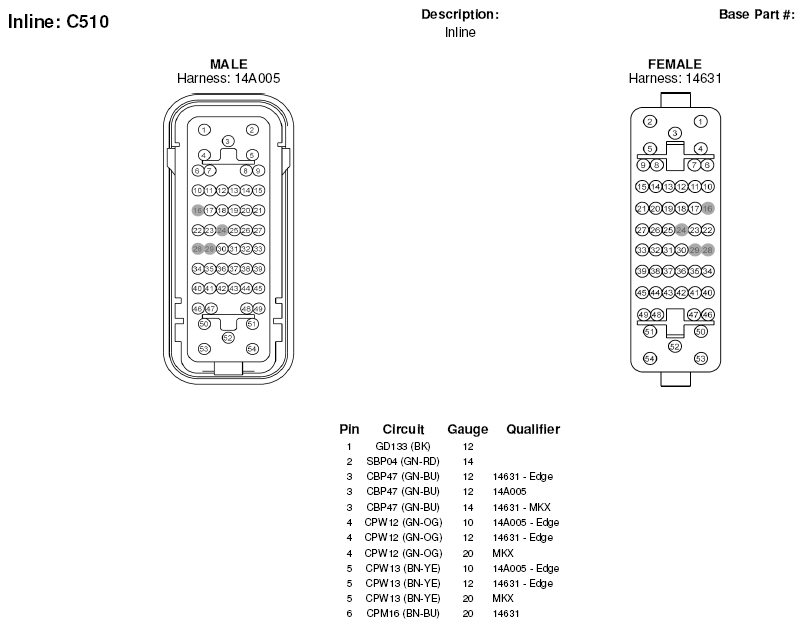

Fig 1: Inline (1 Of 3) Connector End View (C510) (1 Of 3)

Fig 2: Inline (2 Of 3) Connector End View (C510) (2 Of 3)

Fig 3: Inline (3 Of 3) Connector End View (C510) (3 Of 3)
