Joint Connector

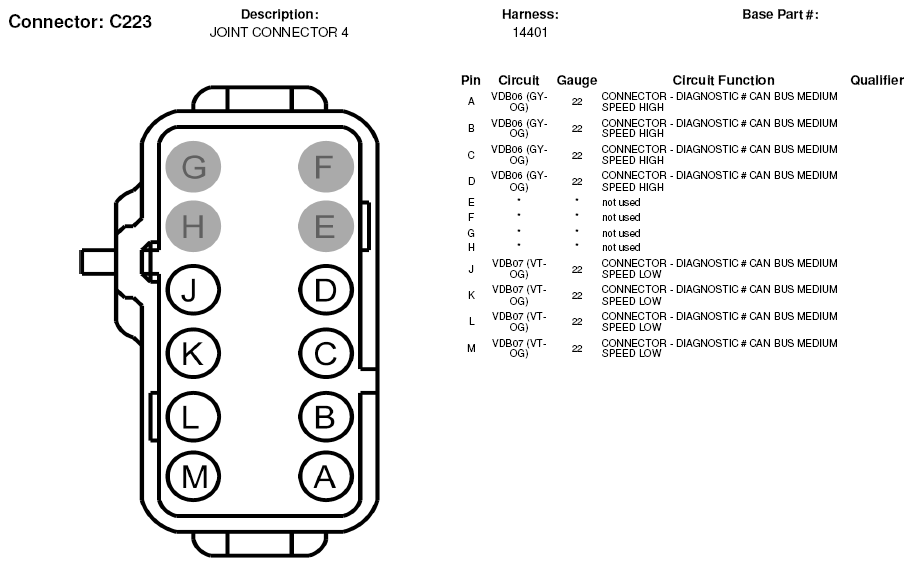

Fig 1: Joint Connector 4 Connector End View (C223)

Fig 2: Joint Connector 5 Connector End View (C2199)

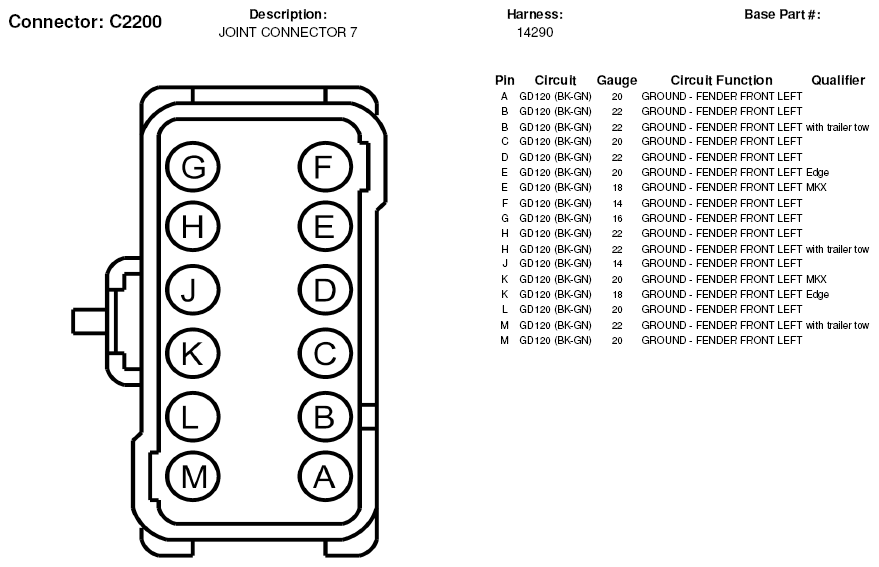

Fig 3: Joint Connector 7 Connector End View (C2200)

Fig 4: Joint Connector 11 Connector End View (C2988)

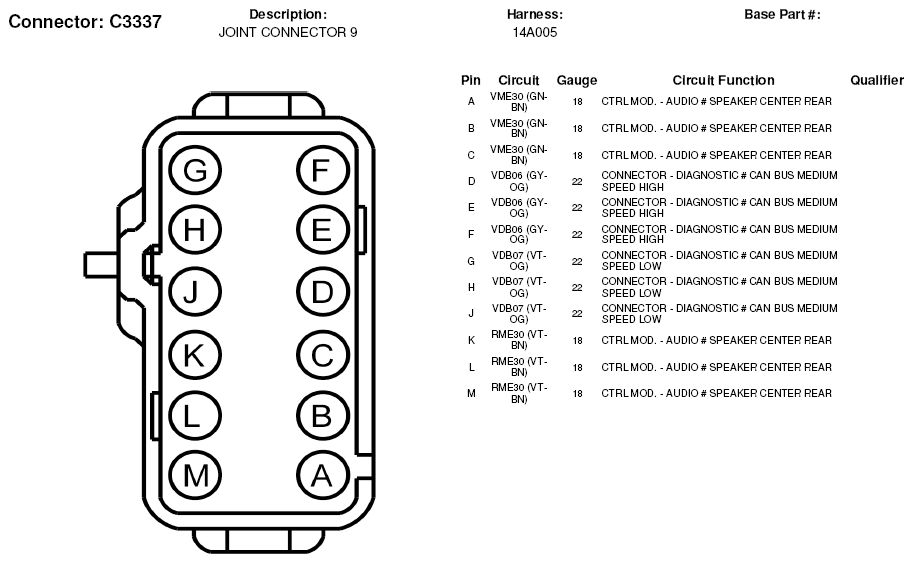

Fig 5: Joint Connector 9 Connector End View (C3337)

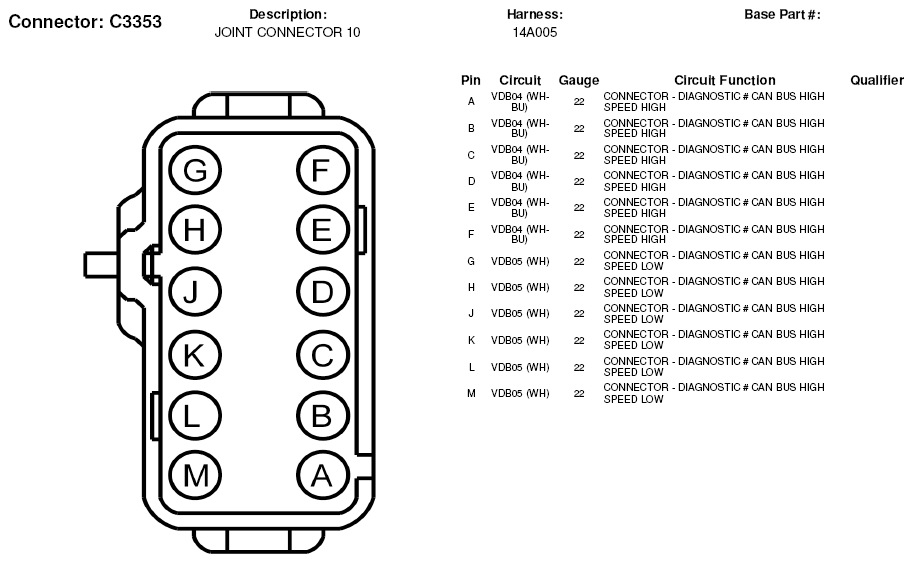

Fig 6: Joint Connector 10 Connector End View (C3353)

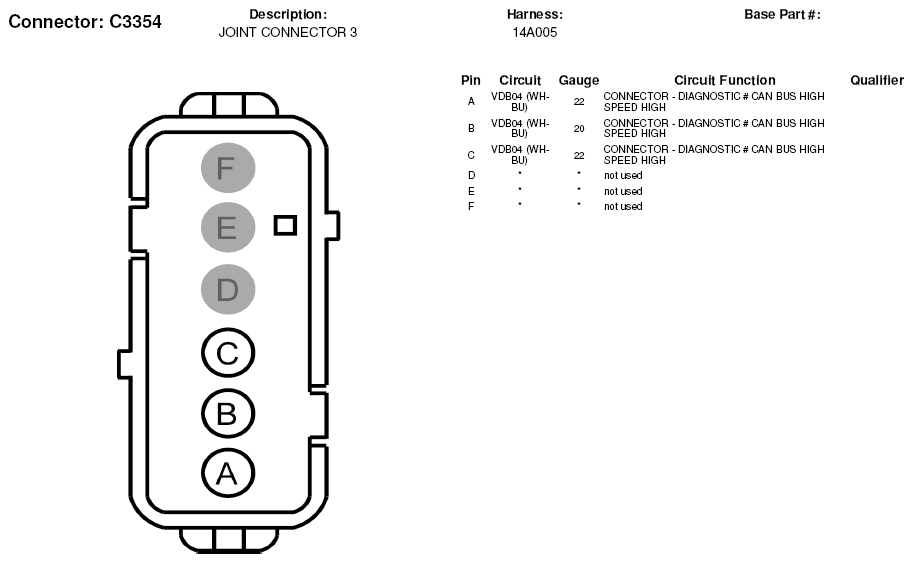

Fig 7: Joint Connector 3 Connector End View (C3354)

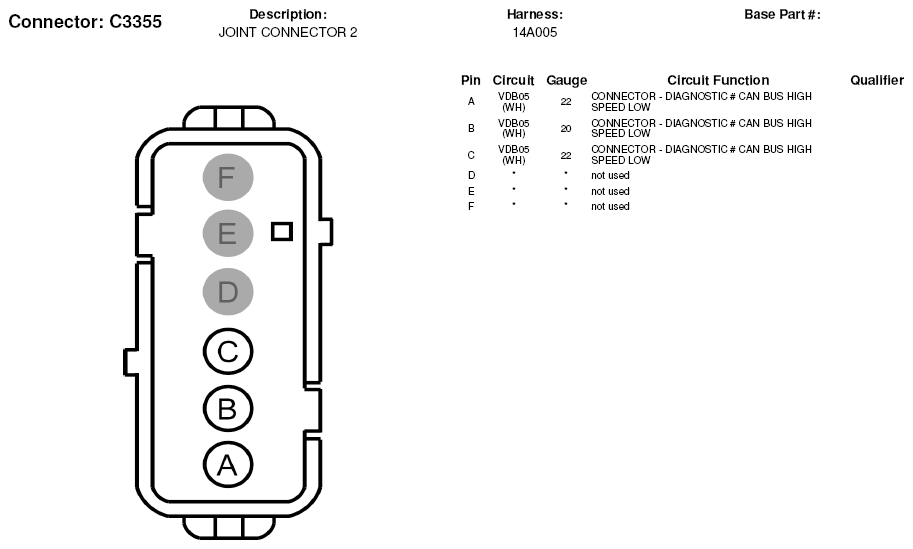

Fig 8: Joint Connector 2 Connector End View (C3355)

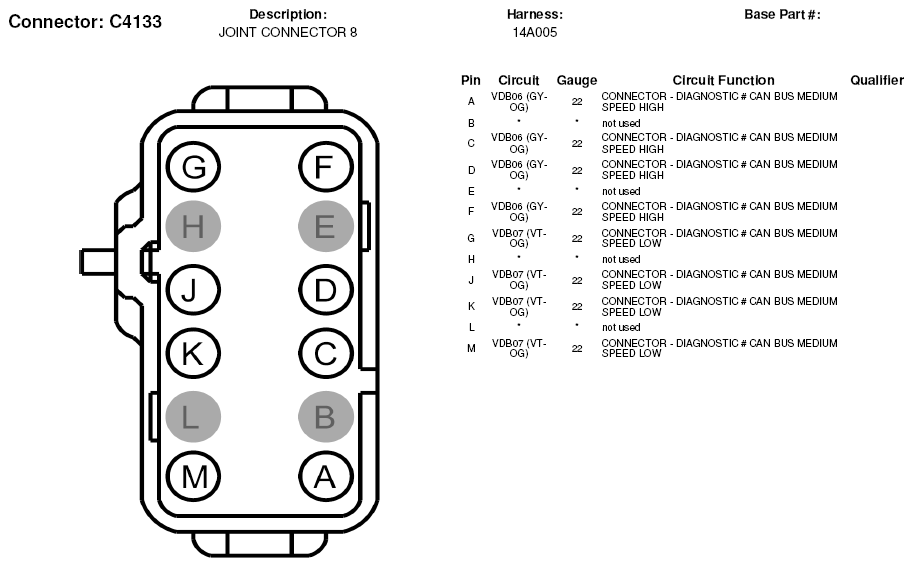

Fig 9: Joint Connector 8 Connector End View (C4133)
