Left Front Tweeter Connector
Left Front Tweeter Connector

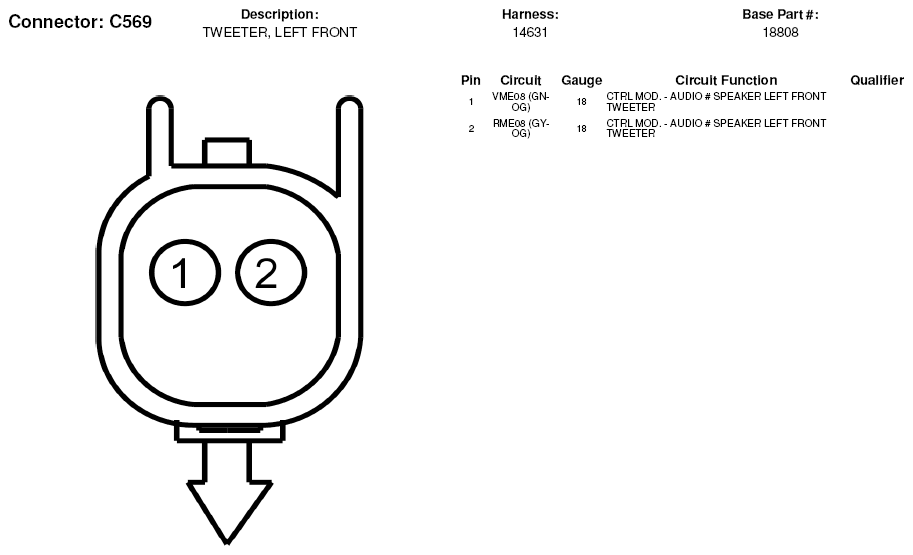

Fig 1: Left Front Tweeter Connector End View (C569)
