Left Power Seat Switch Connector
Left Power Seat Switch Connector

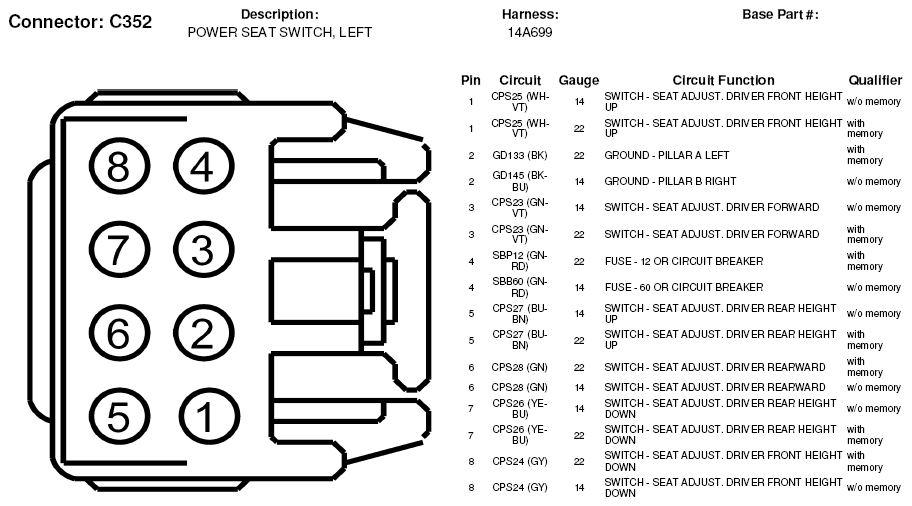

Fig 1: Left Power Seat Switch Connector End View (C352)

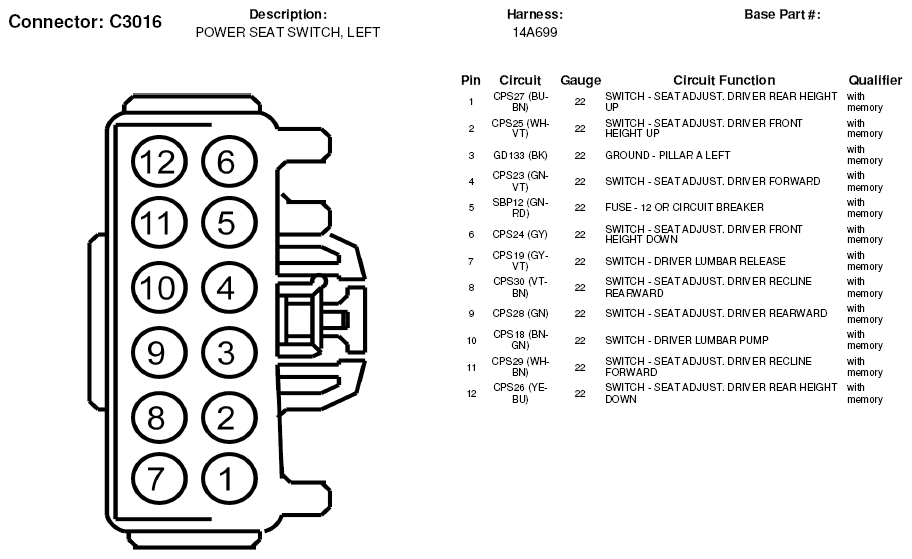

Fig 2: Left Power Seat Switch Connector End View (C3016)
