Left Rear Heated Seat Module Connector
Left Rear Heated Seat Module Connector

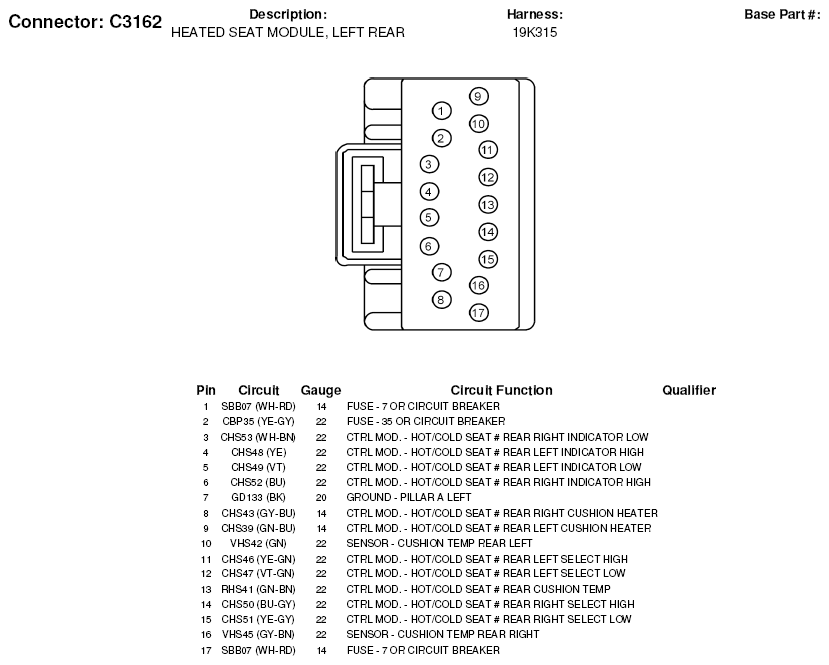

Fig 1: Left Rear Heated Seat Module Connector End View (C3162)
