Left Rear Wheel Speed Sensor Connector
Left Rear Wheel Speed Sensor Connector

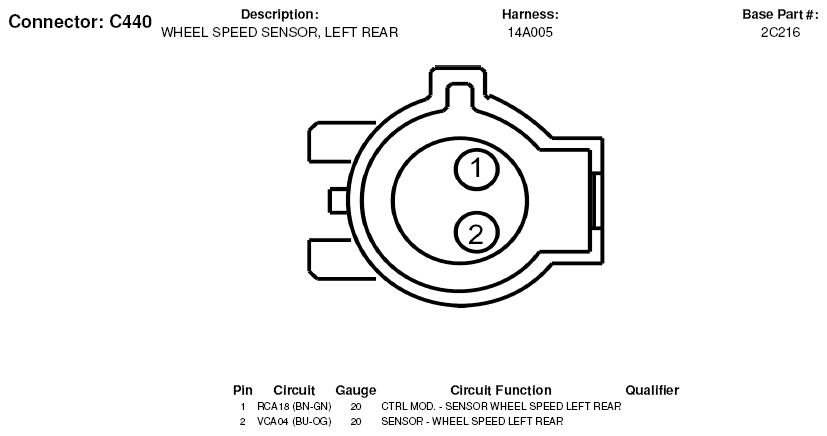

Fig 1: Left Rear Wheel Speed Sensor Connector End View (C440)
