Home › Ford › 2008 › Edge SE, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Liftgate Drive Unit Connector

Liftgate Drive Unit Connector

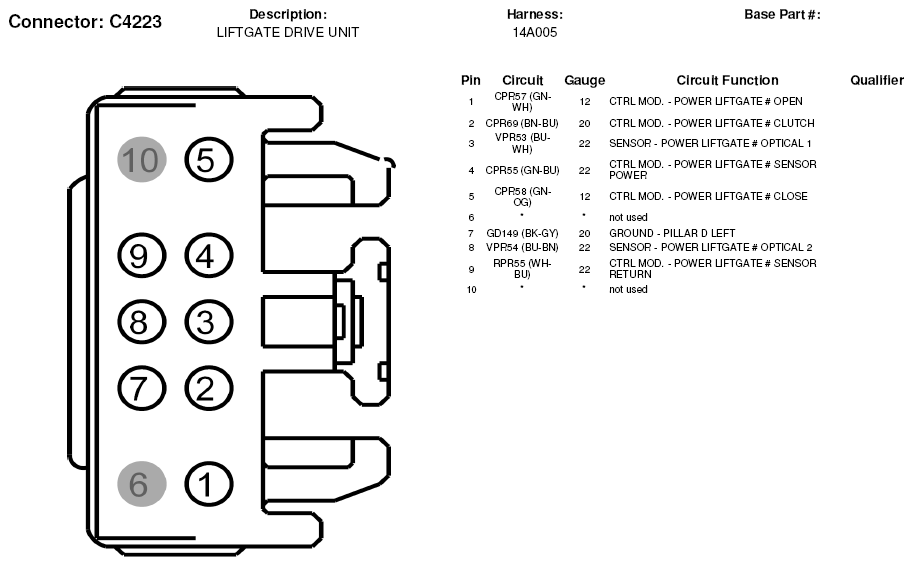

Fig 1: Liftgate Drive Unit Connector End View (C4223)
G05599096
