Liftgate Rear Control Switch Connector

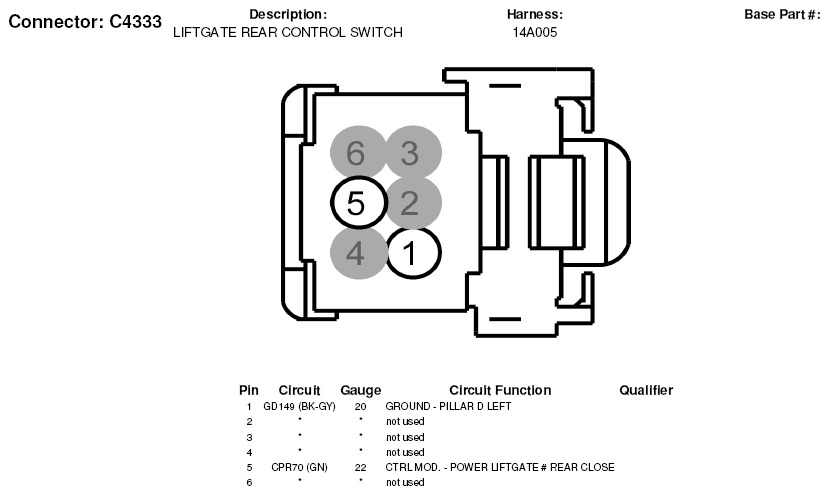

Fig 1: Liftgate Rear Control Switch Connector End View (C4333)
G05599097
