Occupant Classification Sensor 1 Connector
Occupant Classification Sensor 1 Connector

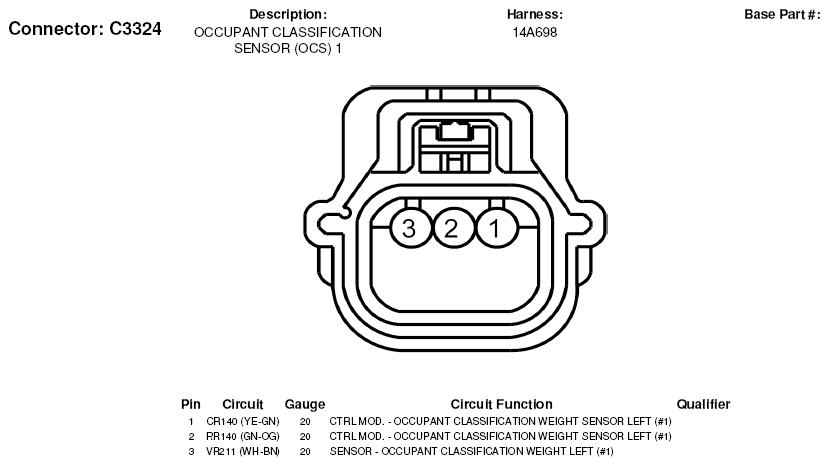

Fig 1: Occupant Classification Sensor 1 Connector End View (C3324)
