Occupant Classification Sensor 3 Connector
Occupant Classification Sensor 3 Connector

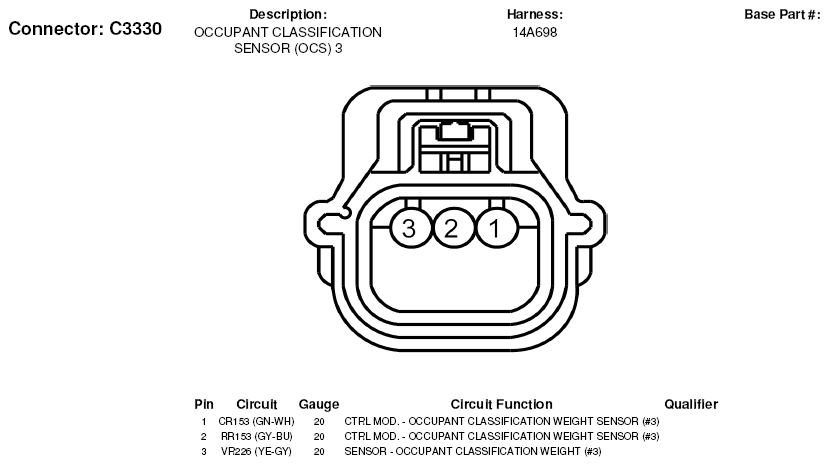

Fig 1: Occupant Classification Sensor 3 Connector End View (C3330)
