Passenger Side Front Heated Seat Module Connector

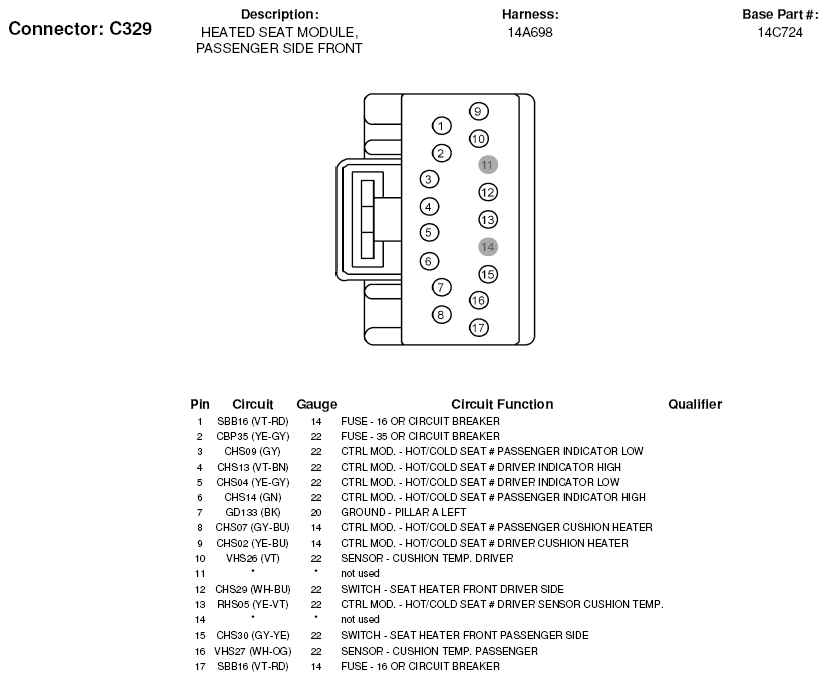

Fig 1: Passenger Side Front Heated Seat Module Connector End View (C329)
G05598879
