Power Liftgate Release Switch Connector
Power Liftgate Release Switch Connector

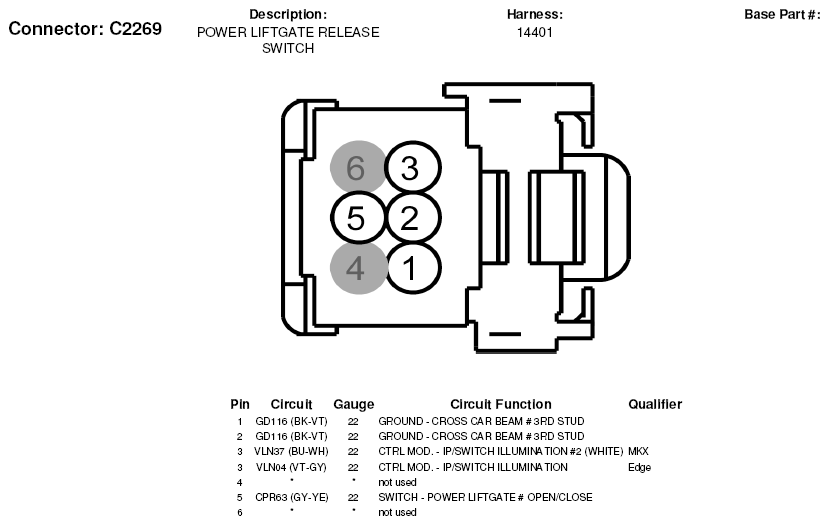

Fig 1: Power Liftgate Release Switch Connector End View (C2269)
