Right Front Side Airbag Module Connector
Right Front Side Airbag Module Connector

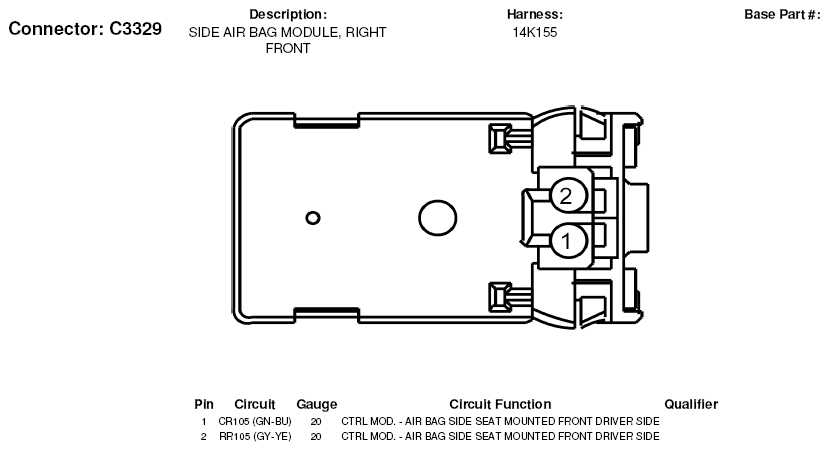

Fig 1: Right Front Side Airbag Module Connector End View (C3329)
