Right Front Side Impact Sensor Connector
Right Front Side Impact Sensor Connector

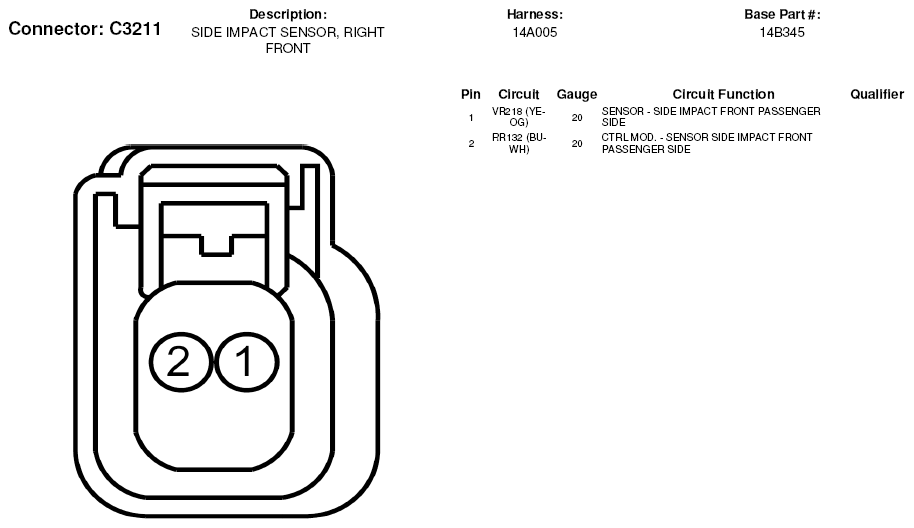

Fig 1: Right Front Side Impact Sensor Connector End View (C3211)
