Right Side Front Power Window Switch Connector
Right Side Front Power Window Switch Connector

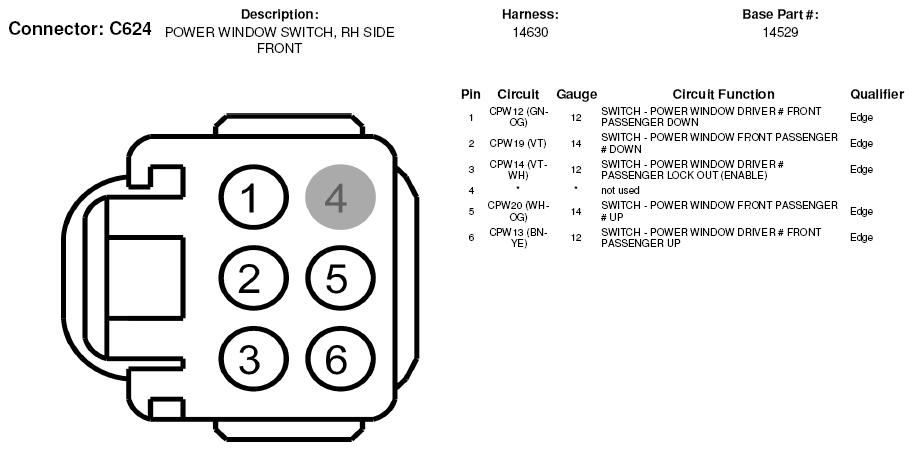

Fig 1: Right Side Front Power Window Switch Connector End View (C624)

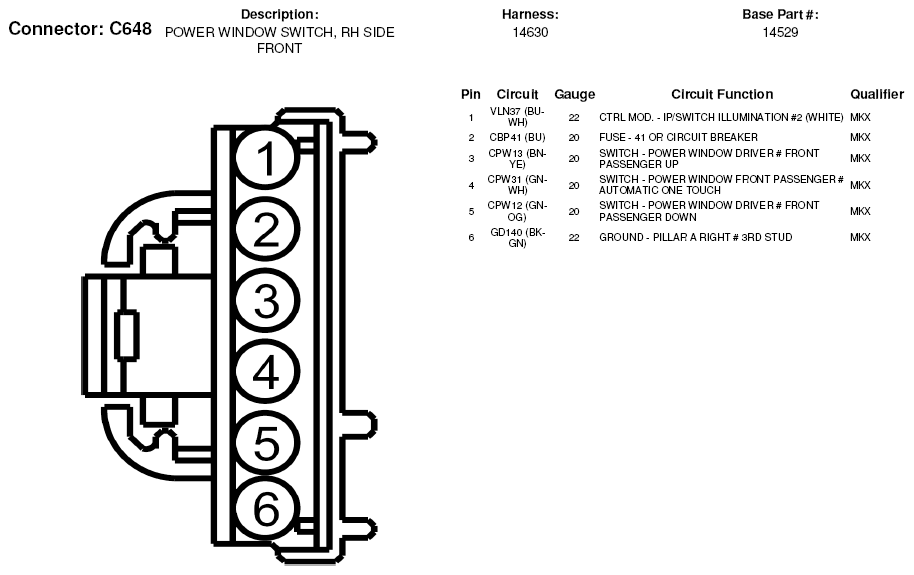

Fig 2: Right Side Front Power Window Switch Connector End View (C648)
