Clockspring Connectors

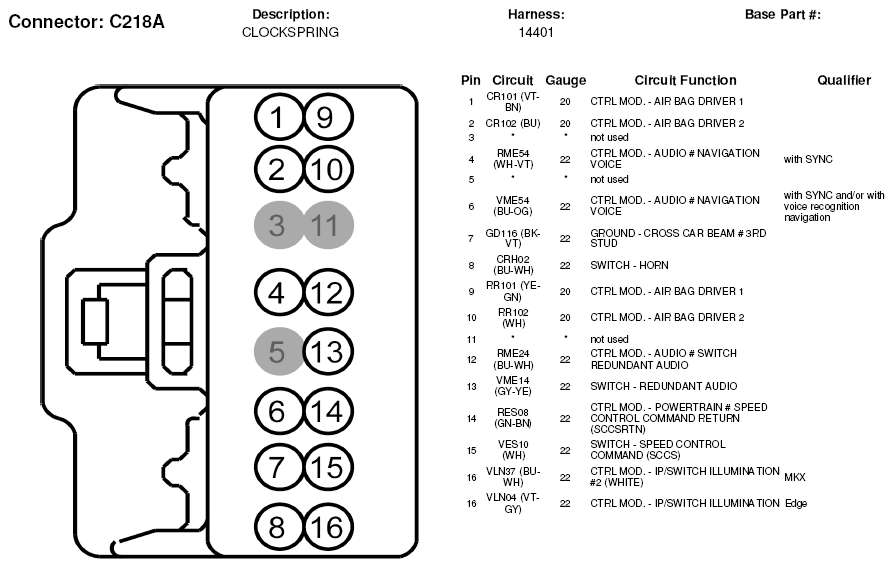

Fig 1: Clockspring Connector End View (C218A)
G05598837

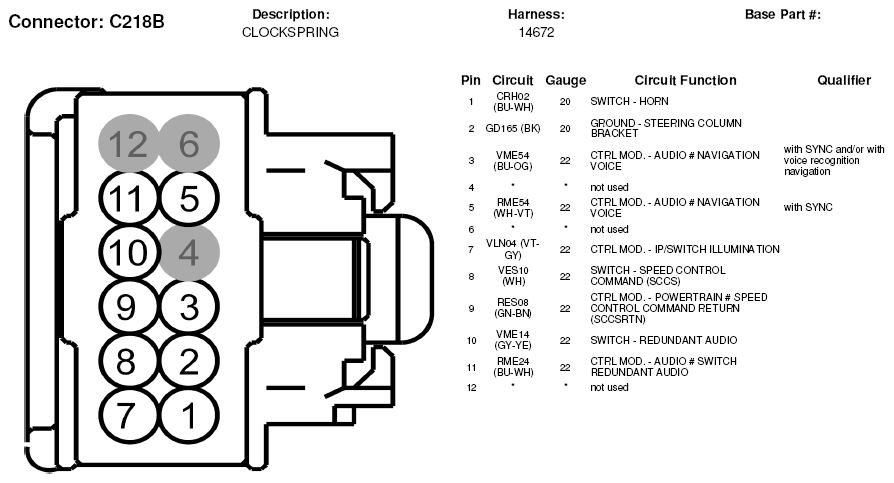

Fig 2: Clockspring Connector End View (C218B)
G05598838
