Fuel Injector Connectors

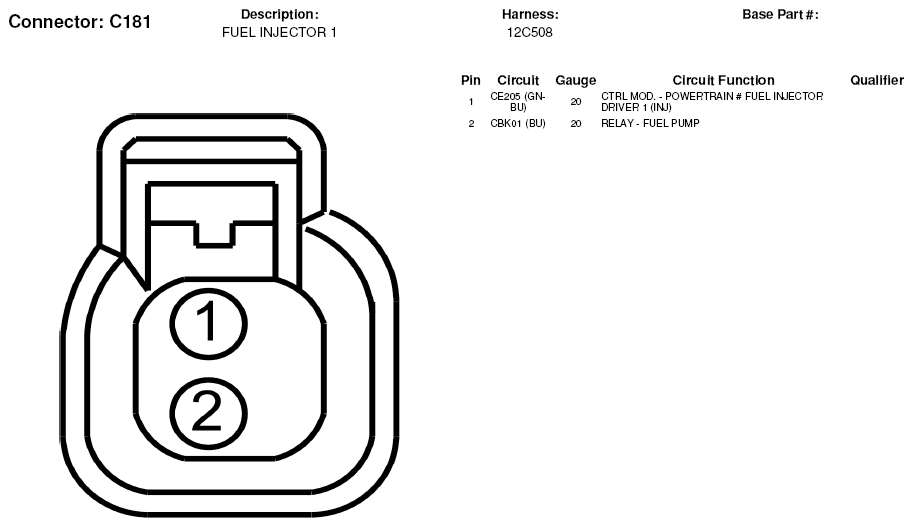

Fig 1: Fuel Injector 1 Connector End View (C181)

G05598816

Fig 2: Fuel Injector 2 Connector End View (C182)

G05598817

Fig 3: Fuel Injector 3 Connector End View (C183)

G05598818

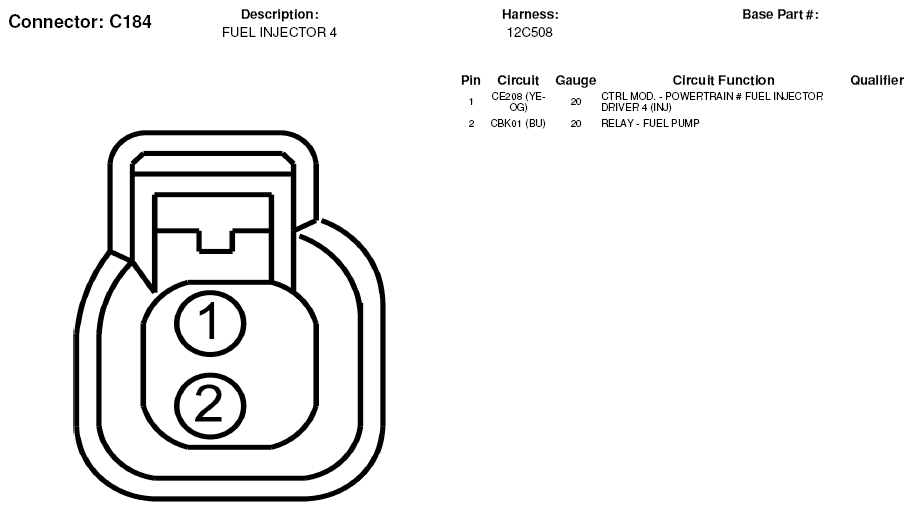

Fig 4: Fuel Injector 4 Connector End View (C184)

G05598819

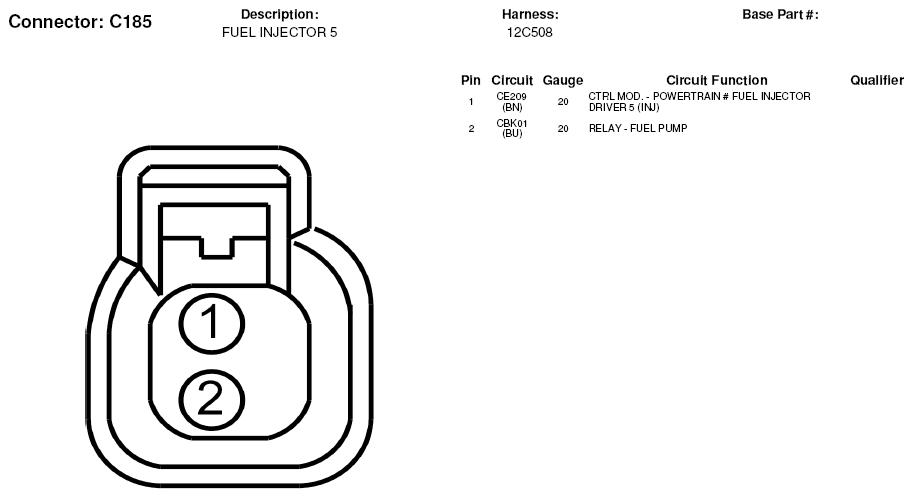

Fig 5: Fuel Injector 5 Connector End View (C185)

G05598820

Fig 6: Fuel Injector 6 Connector End View (C186)

G05598821
