Inner Left Parking Aid Sensor Connector
Inner Left Parking Aid Sensor Connector

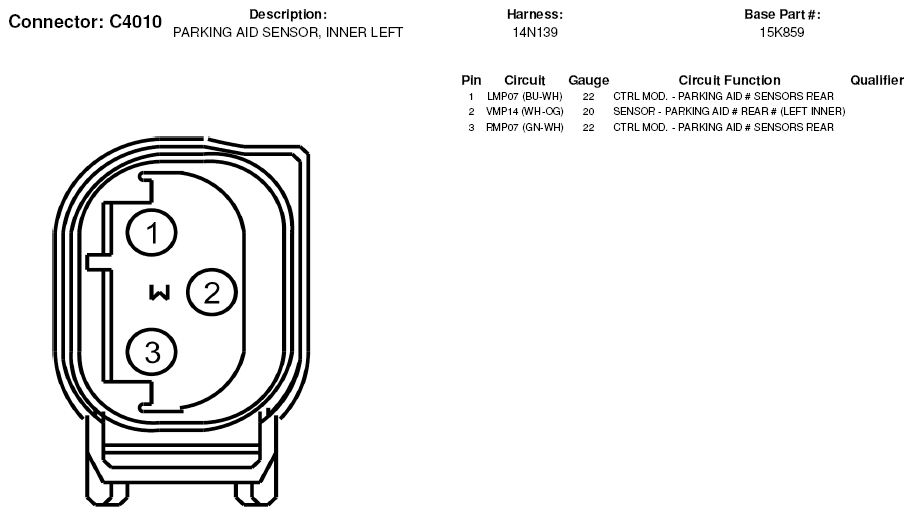

Fig 1: Inner Left Parking Aid Sensor Connector End View (C4010)
