Left Front Speaker Connector

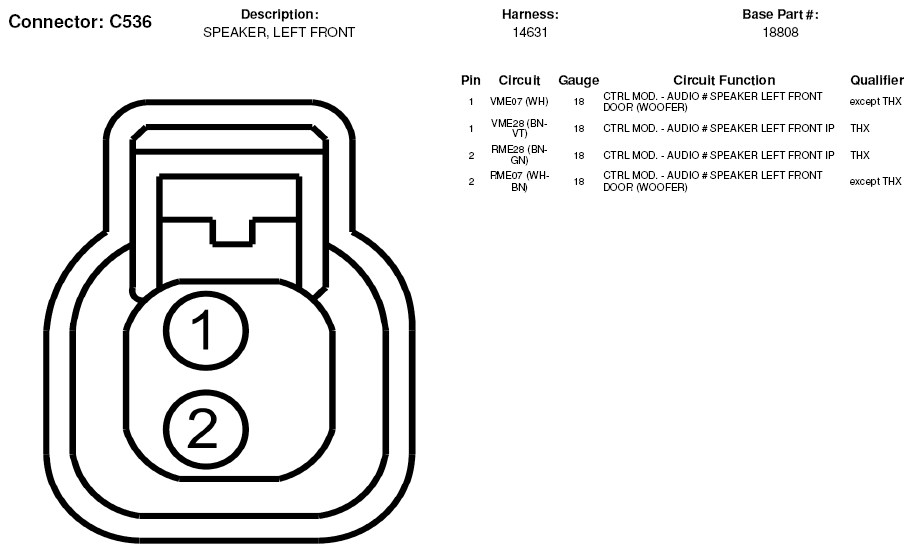

Fig 1: Left Front Speaker Connector End View (C536)
G05598923

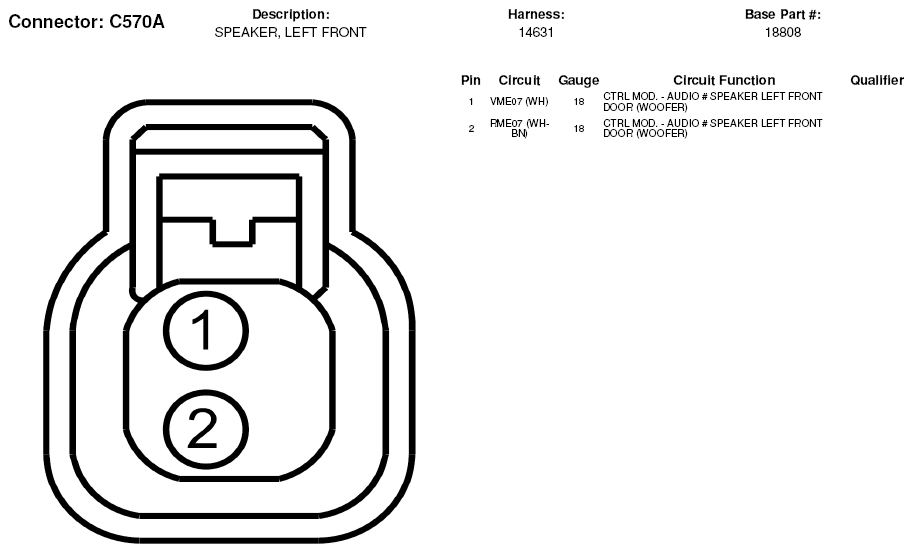

Fig 2: Left Front Speaker Connector End View (C570A)
G05598926

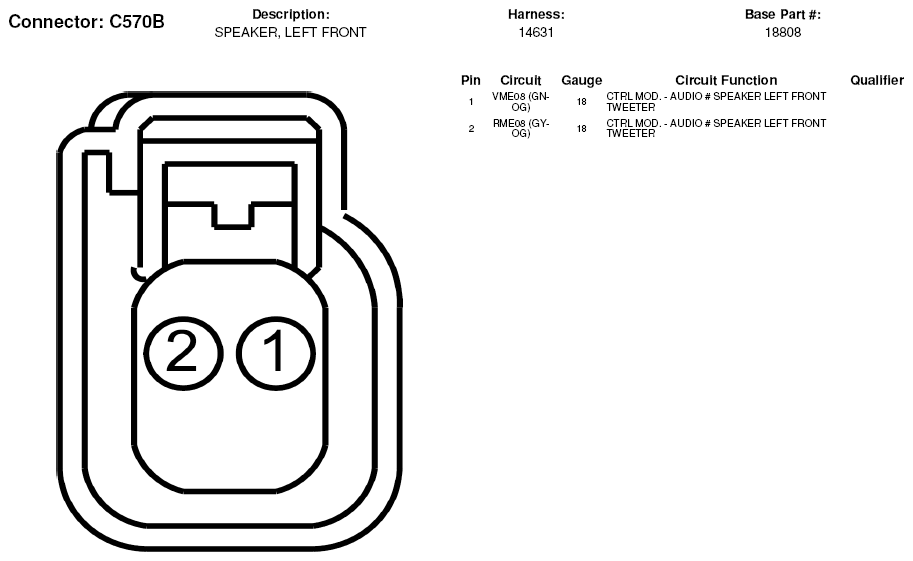

Fig 3: Left Front Speaker Connector End View (C570B)
G05598927
