Left Headlamp Connector

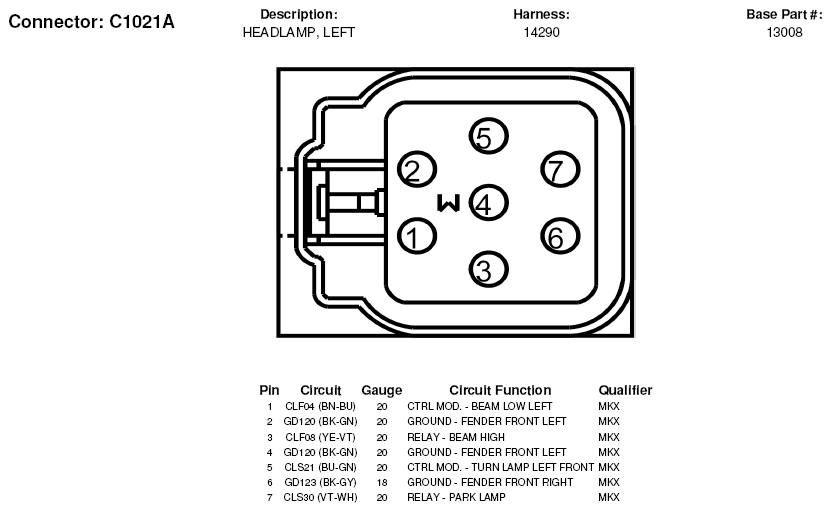

Fig 1: Left Headlamp Connector End View (C1021A)
G05598969

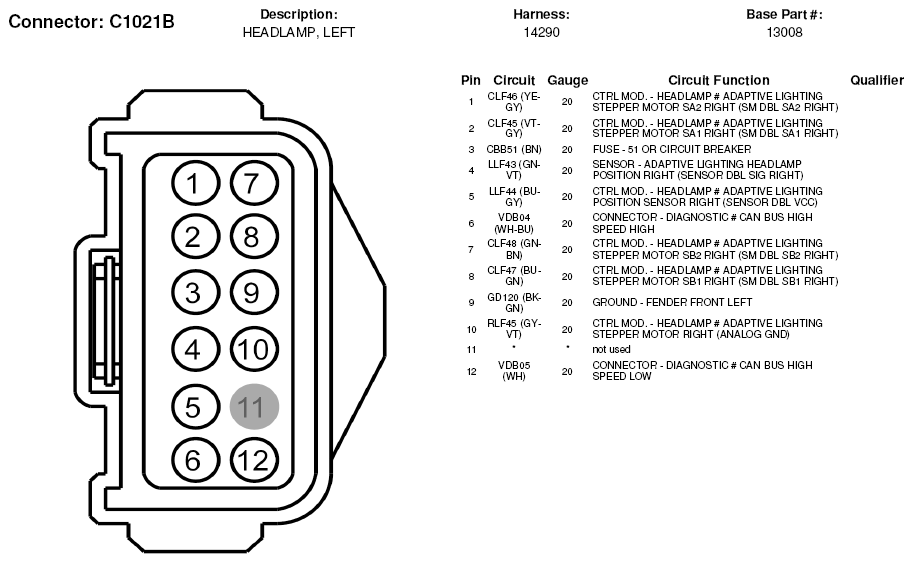

Fig 2: Left Headlamp Connector End View (C1021B)
G05598970
