Right Rear Tweeter Connector
Right Rear Tweeter Connector

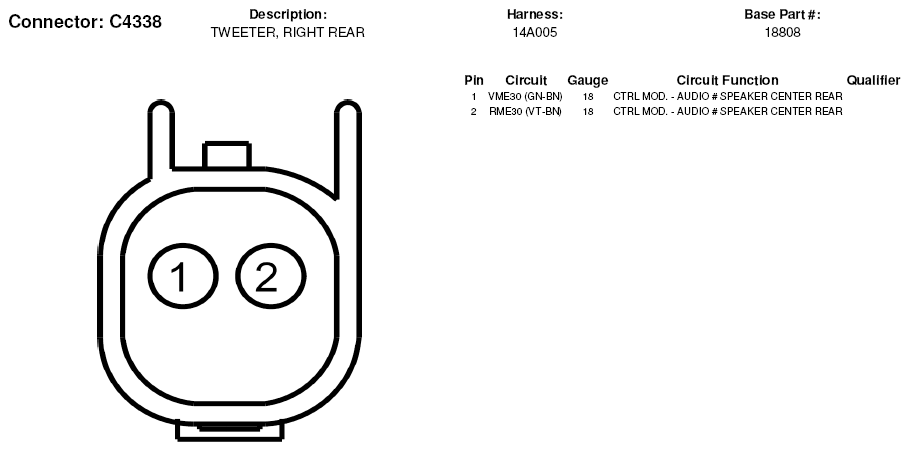

Fig 1: Right Rear Tweeter Connector End View (C4338)
