Right Reversing Lamp Connector

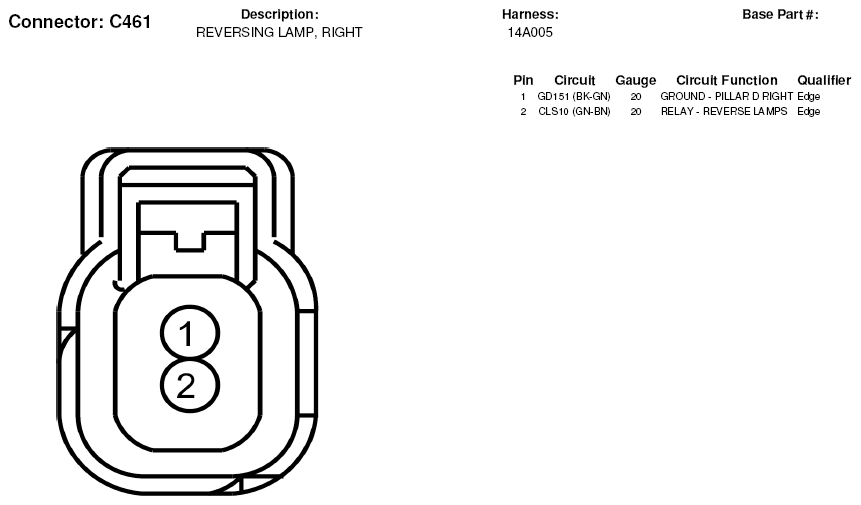

Fig 1: Right Reversing Lamp Connector End View (C461)

G05598903

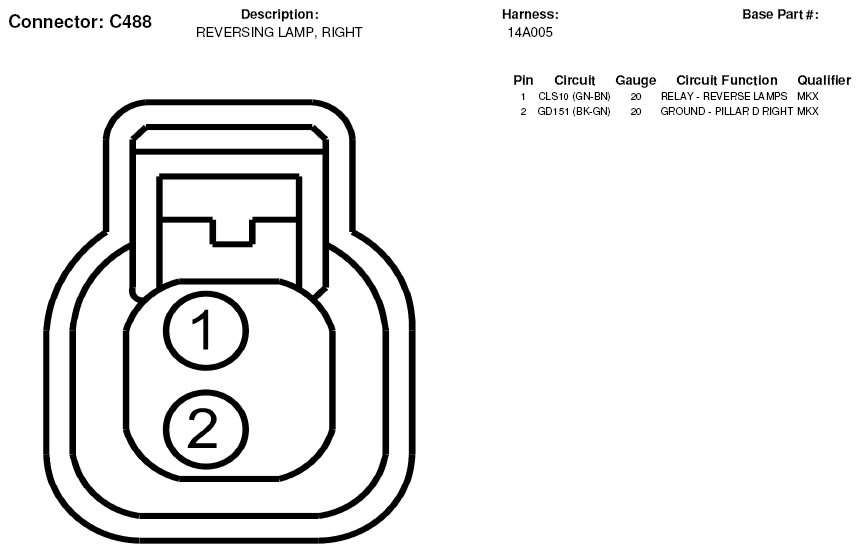

Fig 2: Right Reversing Lamp Connector End View (C488)

G05598909
