Roof Opening Panel Motor Assembly Connector
Roof Opening Panel Motor Assembly Connector

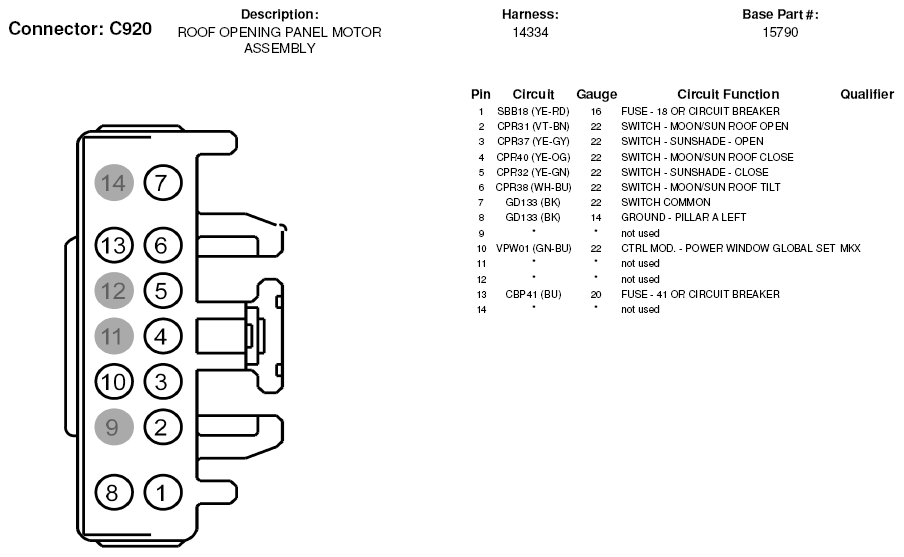

Fig 1: Roof Opening Panel Motor Assembly Connector End View (C920)
