Ambient Air Temperature Sensor Connector
Ambient Air Temperature Sensor Connector

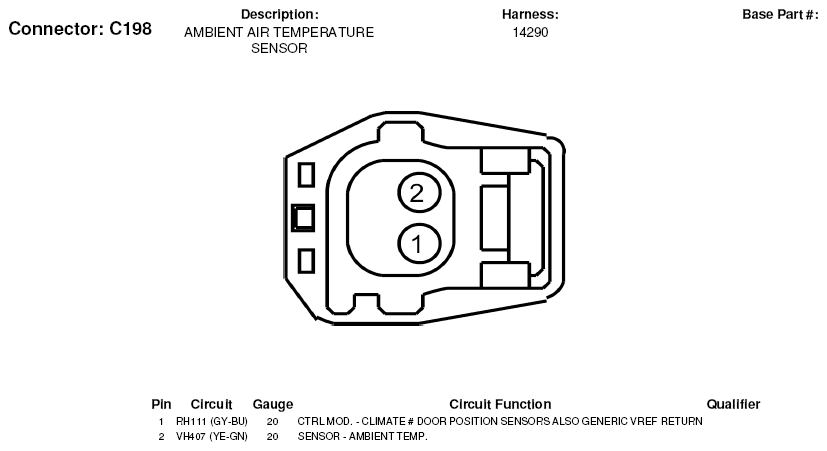

Fig 1: Ambient Air Temperature Sensor Connector End View (C198)
