Left Rear Side Impact Sensor Connector
Left Rear Side Impact Sensor Connector

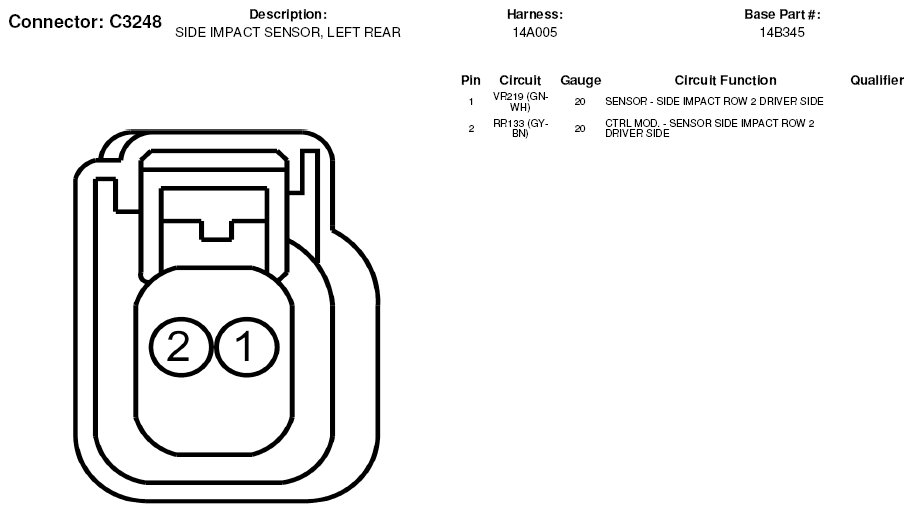

Fig 1: Left Rear Side Impact Sensor Connector End View (C3248)
