Home › Ford › 2008 › Edge SE, FWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Liftgate Ajar Switch Connector

Liftgate Ajar Switch Connector

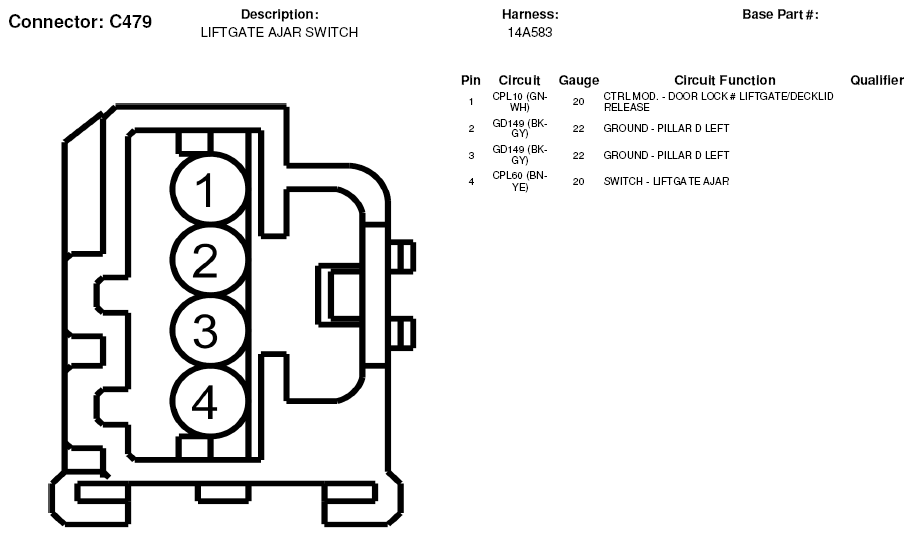

Fig 1: Liftgate Ajar Switch Connector End View (C479)
G05598907
