Passenger Side Air Curtain Module Connector
Passenger Side Air Curtain Module Connector

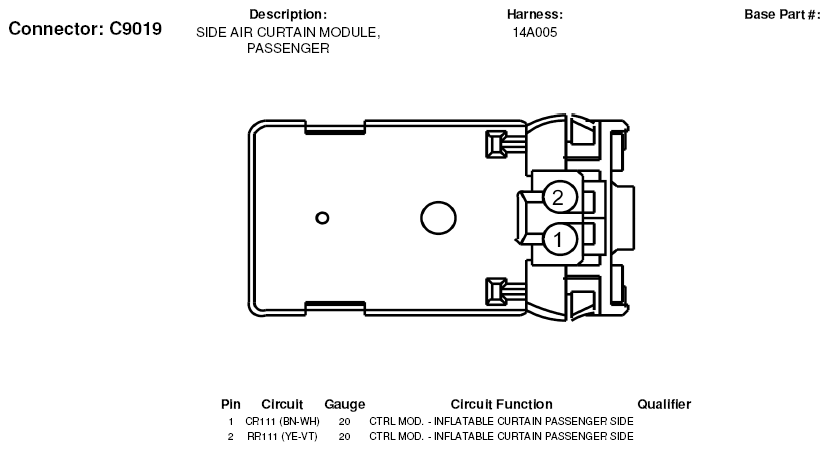

Fig 1: Passenger Side Air Curtain Module Connector End View (C9019)
