Powertrain Control Module (PCM): Notes

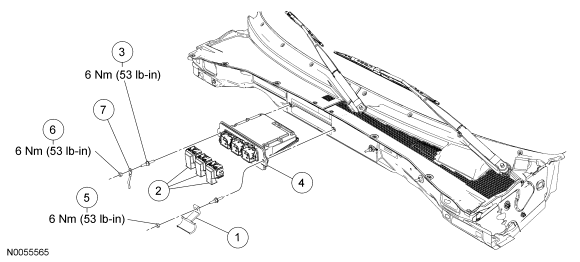

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wiring harness retainer (part of 12B637)
2	14A464	PCM electrical connectors (part of 12B637) (3 required)
3	N806925-S	PCM stud bolt (2 required)
4	12A650	PCM
5	W500412	Wiring harness retainer nut
6	W500412	Ground strap nut
7	-	Ground strap
