Four Wheel Drive Switch Connector
Four Wheel Drive Switch Connector

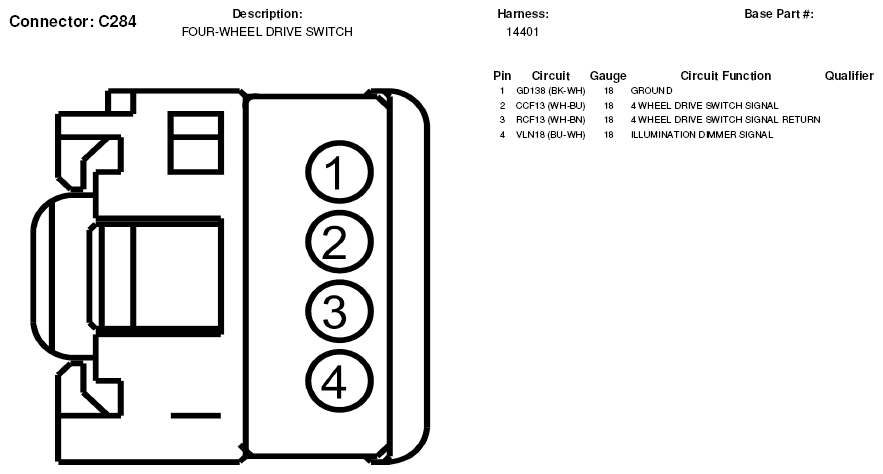

Fig 1: Four Wheel Drive Switch Connector End View (C284)

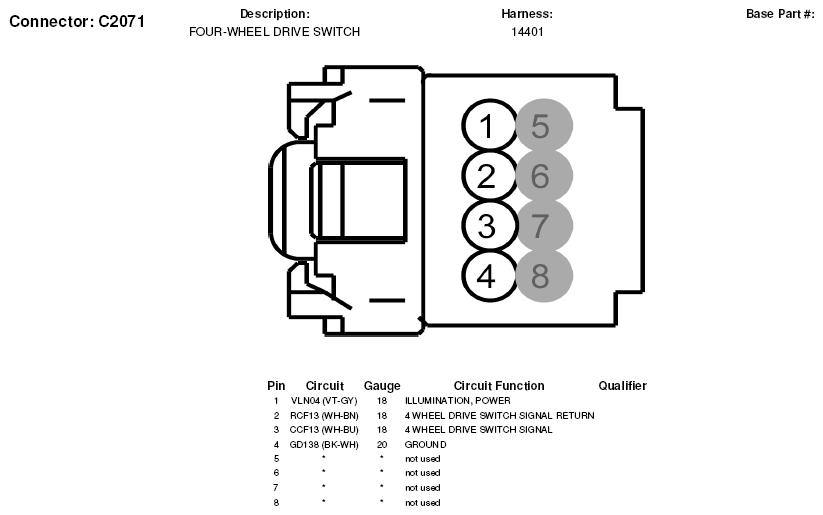

Fig 2: Four Wheel Drive Switch Connector End View (C2071)
