Anti-Lock Brake System Module Connector

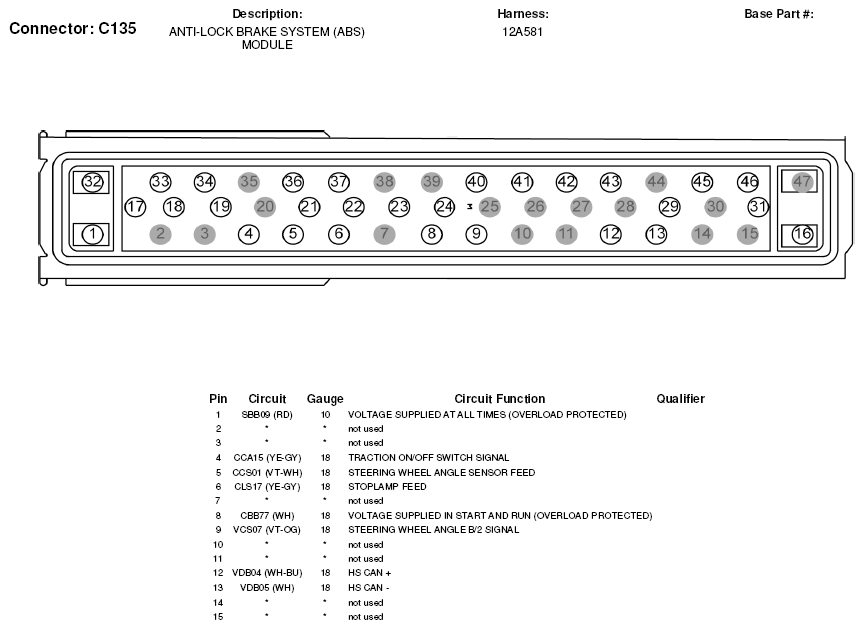

Fig 1: Anti-Lock Brake System Module Connector End View (C135) (1 Of 2)

G05599772

Fig 2: Anti-Lock Brake System Module Connector End View (C135) (2 Of 2)

G05599773
