Audio Control Module (ACM): Notes

NOTE: Expedition shown, Navigator similar.

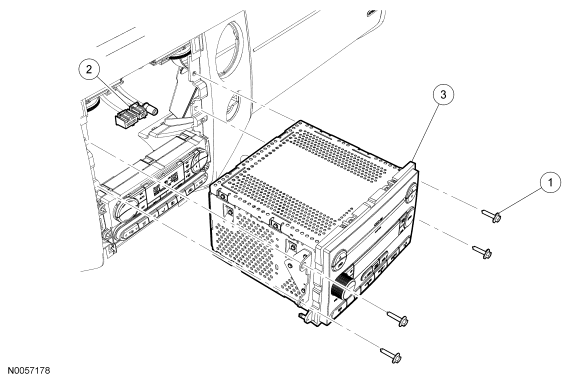

Fig 1: Exploded View Of Audio Unit

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628-S	Audio control module (ACM) screws (4 required)
2	-	ACM electrical connectors and antenna cable connector (part of 14401)
3	18C815/18C869/ 18K931	ACM
