Audio Rear Control Unit Module Connector
Audio Rear Control Unit Module Connector

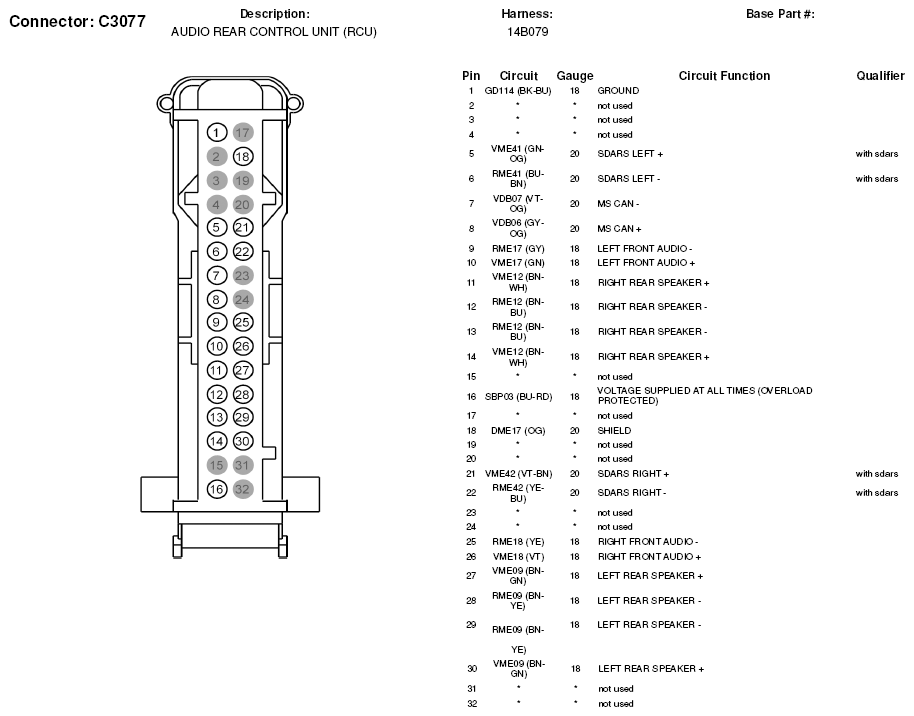

Fig 1: Audio Rear Control Unit Module Connector End View (C3077)
