Wheel Speed Sensor - Rear: Notes

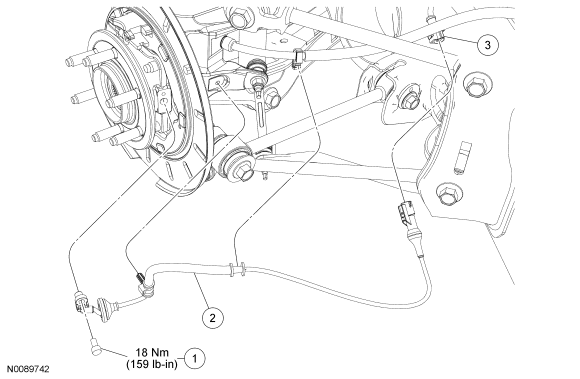

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Rear wheel speed sensor bolt (part of 2C190)
2	2C190	Rear wheel speed sensor
3	-	Body harness electrical connector (part of 14A464)
