Audio Digital Signal Processing Module Connector

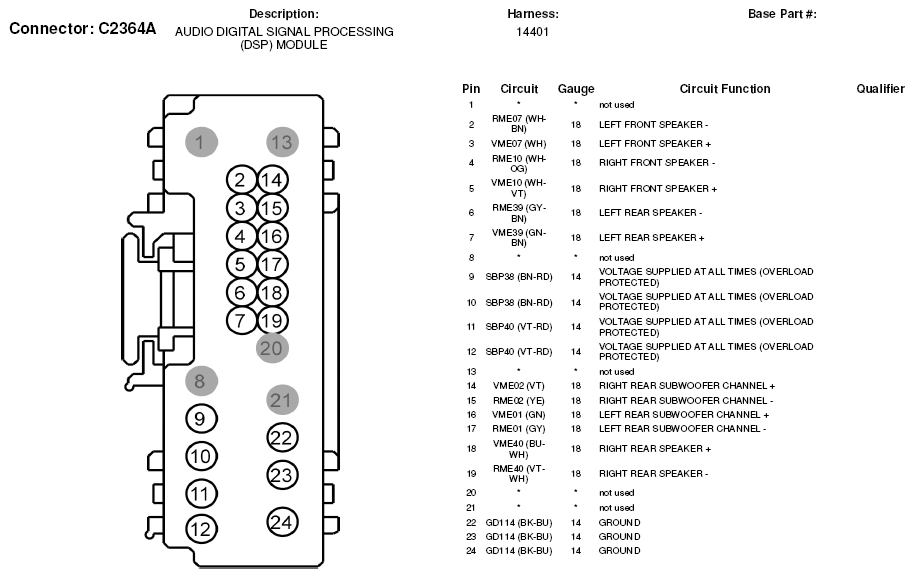

Fig 1: Audio Digital Signal Processing Module Connector End View (C2364A)

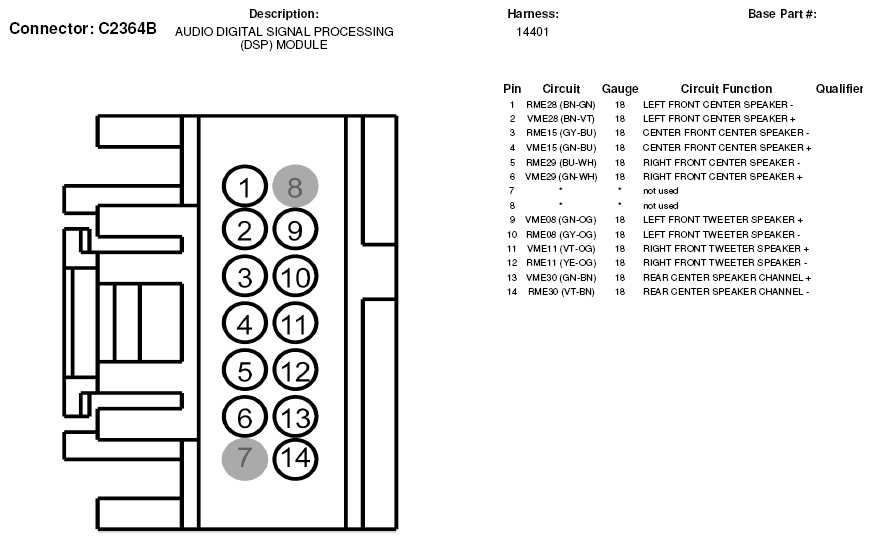

Fig 2: Audio Digital Signal Processing Module Connector End View (C2364B)

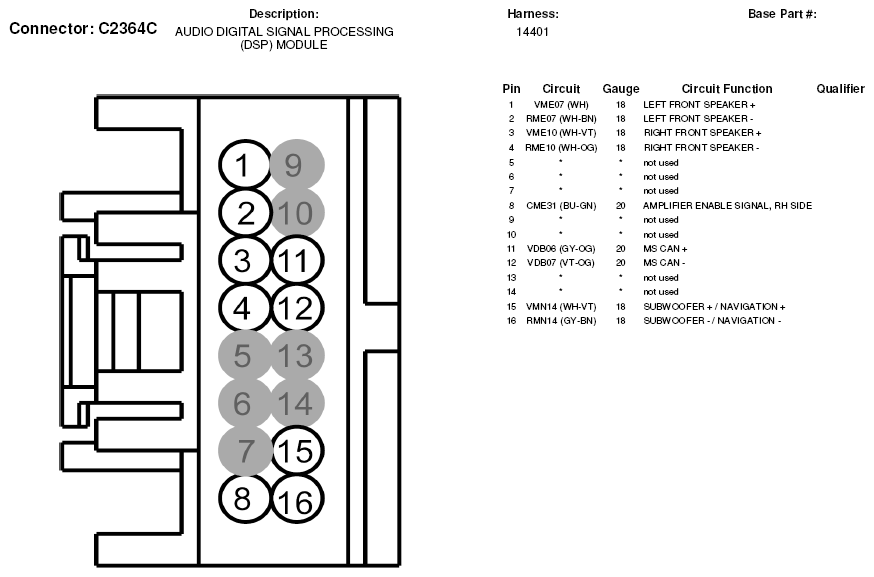

Fig 3: Audio Digital Signal Processing Module Connector End View (C2364C)
