Audio Input Jack Connector
Audio Input Jack Connector

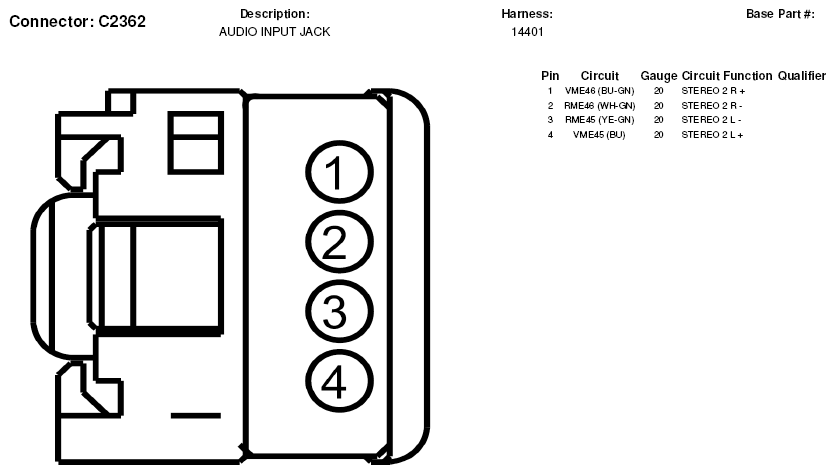

Fig 1: Audio Input Jack Connector End View (C2362)

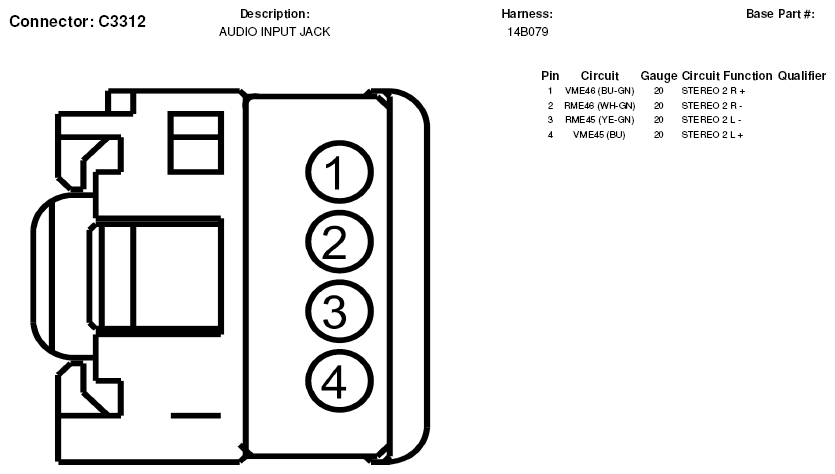

Fig 2: Audio Input Jack Connector End View (C3312)
