Charge Motion Control Valve Connector

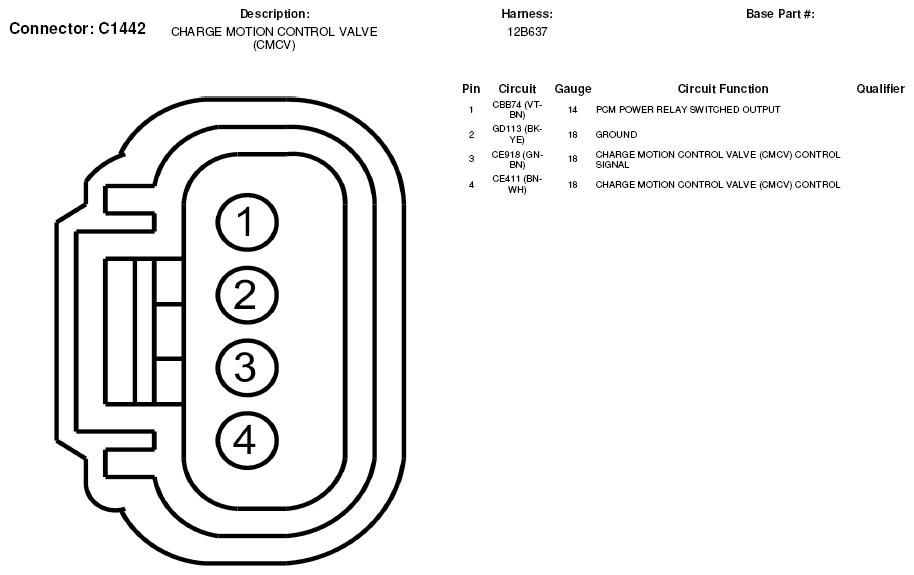

Fig 1: Charge Motion Control Valve Connector End View (C1442)
G05600002
