Front Interior Lamp/ Map Lamp Assembly Connector

Fig 1: Front Interior Lamp/ Map Lamp Assembly Connector End View (C929)

G05599970

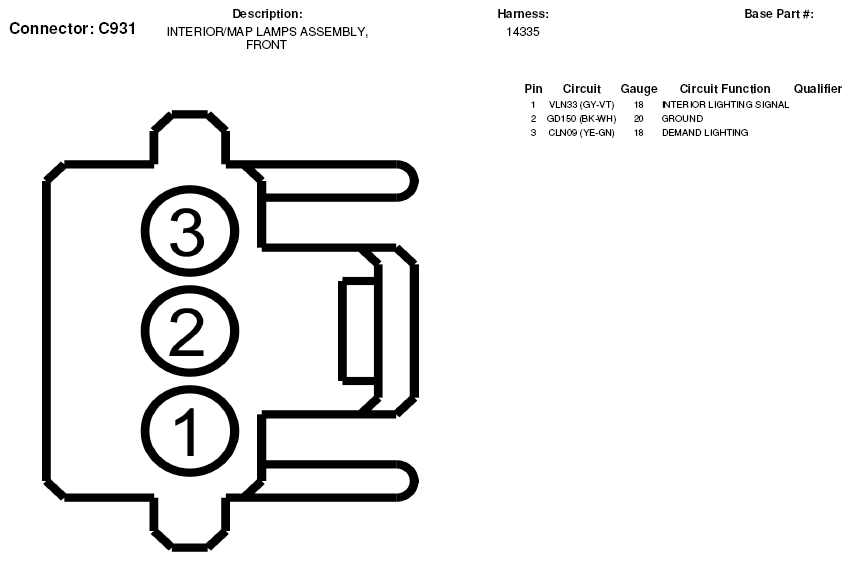

Fig 2: Front Interior Lamp/ Map Lamp Assembly Connector End View (C931)

G05599972
